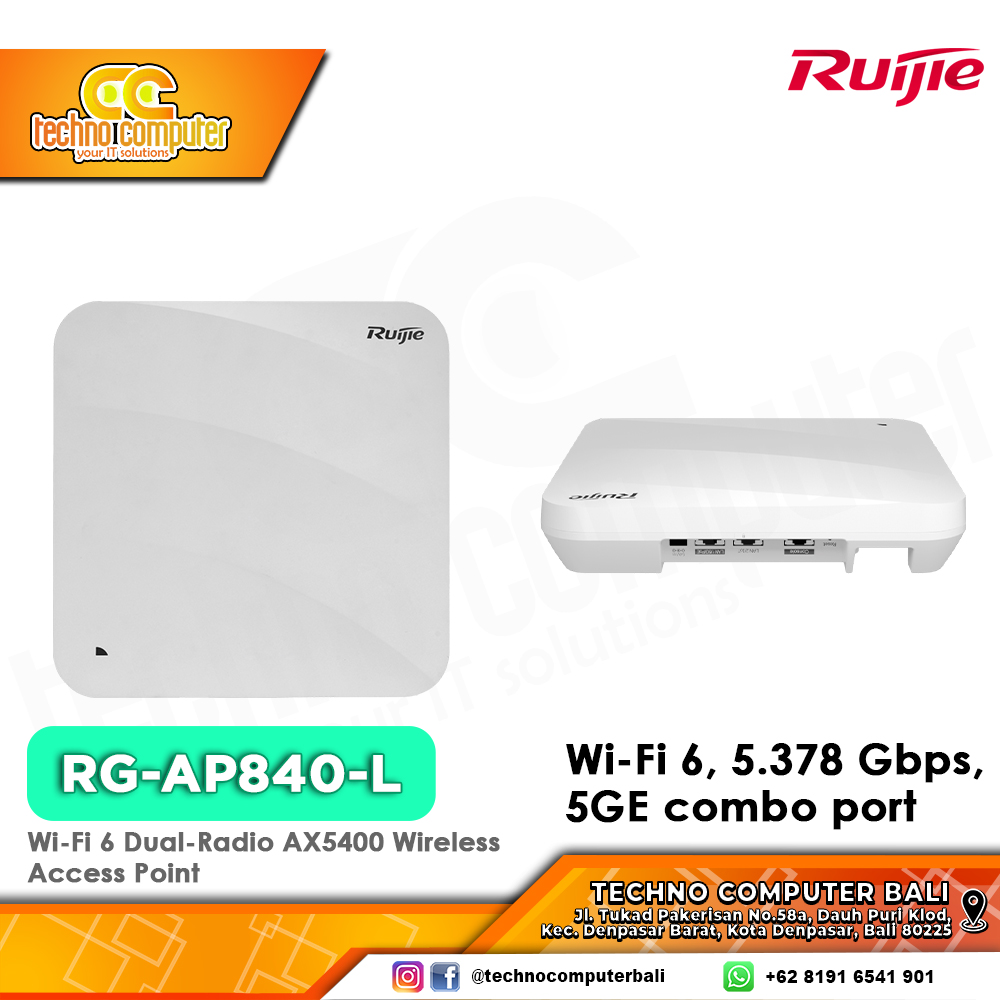

Model: RG-AP840-L
Type: AX5400 Wi-Fi 6 Dual-Band Ceiling Mount Access Point
Description: A high-performance access point designed for seamless network management, offering advanced Wi-Fi 6 technology and robust security features.


Hardware Features
Dimensions: 220mm x 220mm x 35mm (excluding mounting bracket)
Weight: 1.05kg (excluding mounting kits)
Antenna: Built-in omnidirectional antennas (4x4 MIMO)
Ports:
1 x 10/100/1000M/2.5G Base-T port (PoE In)
1 x 10/100/1000 Base-T port
Power Supply: 802.3at PoE or 12V/1.5A DC adapter (adapter sold separately)
Power Consumption: ≤ 25.4W


Performance
Wi-Fi Standards: Wi-Fi 6 (IEEE 802.11ax), Wi-Fi 5 (IEEE 802.11ac Wave 2/Wave1), Wi-Fi 4 (IEEE 802.11n)
Max Data Rate:
2.4 GHz: 1148 Mbps
5 GHz: 4804 Mbps
Total: 5952 Mbps
MIMO: 4x4 @2.4 GHz, 4x4 @5 GHz
Max/Recommended Clients: 512/120


Software Features
Operating Mode: AP mode and routing mode
WLAN:
Maximum number of clients: 512
Maximum number of SSIDs: 8
Support SSID hiding
Layer 2 user isolation
Roaming:
Layer 2 Roaming
Layer 3 Roaming
Security:
PSK authentication
Static blacklist and whitelist
WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption


Management and Maintenance
Cloud Management: Support unified networking of all network equipment, remote monitoring and maintenance with Ruijie Cloud app
Local Management: Support local management with web


Environmental Specifications
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 95% RH (non-condensing)
IP Rating: IP41


Certifications and Warranty
Certifications: CE, ROHS
Warranty: 3 years

Package Contents
RG-AP840-L Access Point
Mounting Bracket
Cross Pan Head Screw
Expansion Anchor
Quick Start Guide
Warranty Card
