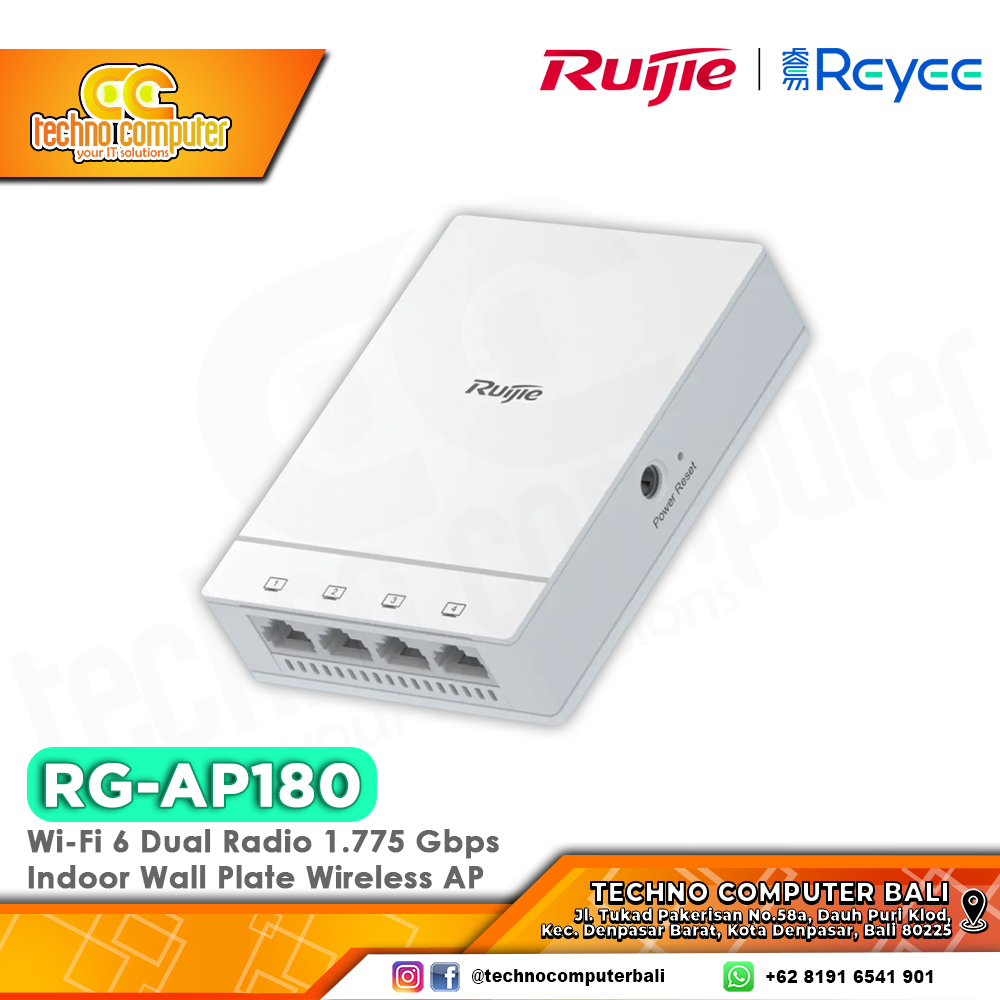

Key specifications of the RG-AP180:

Wireless Performance

Wi-Fi Standard: 802.11ax (Wi-Fi 6), backward compatible with 802.11a/b/g/n/ac.

Dual-Radio: Supports both 2.4 GHz and 5 GHz bands simultaneously.

Max Wireless Speed: Up to 1.775 Gbps (1774.5 Mbps) when both radios are enabled.2.4 GHz: Up to 574.5 Mbps5 GHz: Up to 1.2 Gbps

Antenna: Built-in omnidirectional antenna with a gain of 2 dBi on both bands.

Spatial Streams: 2x2 MIMO on both 2.4 GHz and 5 GHz.

Advanced Features: Supports OFDMA, MU-MIMO, and BSS Coloring for enhanced multi-user performance and reduced interference.

Hardware and Ports

Uplink Port: 1x 10/100/1000BASE-T Ethernet port (PoE).

Downlink Ports: 4x 10/100/1000BASE-T Ethernet ports, providing wired connections for devices like computers or IPTVs.

Power Supply: Supports Power over Ethernet (PoE+).

IoT Integration: Includes an integrated IoT module supporting Bluetooth 5.0 and Zigbee protocols.

Physical Design: Wall-mounted, fitting into standard 86 mm junction boxes. It has an elegant white finish.

Dimensions:In-wall: 86 mm × 116 mm × 19 mmAbove-wall: 86 mm × 116 mm × 24 mm

Management

Management Modes: Supports both FAT (standalone) and FIT (controller-managed) modes.

Cloud Management: Can be managed centrally with the Ruijie Cloud Service, which is a lifetime free service. This allows for easy provisioning, authentication, and monitoring.
