Eaton UPS 5A adalah UPS line-interactive fase tunggal, dengan rating daya 700–2200 VA. UPS ini hadir dalam bentuk tower. UPS 5A dilengkapi fitur perlindungan dari lonjakan daya agar steker dan pemutus sirkuit awet. Fitur ini menghadirkan lapisan perlindungan tambahan agar Anda bisa beraktivitas dengan tenang. Eaton UPS 5A juga hadir dengan berbagai steker – Schuko, universal NEMA, dan Universal, untuk kemudahan penyambungan.

Penggunaan: Cocok untuk rumah dan bisnis berskala kecil dengan PC, workstation, internet access point, perangkat point of sales (POS), dan telepon bisnis.

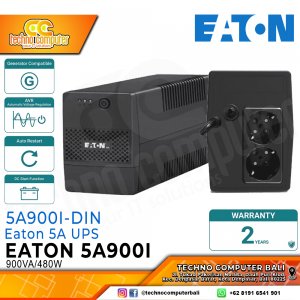

EATON 5A UPS Advantage Series 900VA/480W (5A900I-DIN):
TECHNICAL SPECIFICATIONS – 5A900I
Rating (VA/W): 900VA / 480W
Format: Tower
Electrical Characteristics

Input Voltage Range: 140–300 VAC
Frequency Range: 60/50 Hz (Auto sensing)
Surge Protection: Yes
Generator Compatible: Yes
Mute by Power Key: Yes
Circuit Breaker: Yes
Output

Output Voltage: 230 VAC
Output Voltage Regulation (Battery Mode): ±10%
Battery Wave Form: Stepped sine wave
Protection: PCBA current sensor (F/W protection)
Output Backup Socket: 2x Schuko outlets
Transfer Time: 2–6ms typical, 10ms max
Battery

Type: 12V / 9Ah x1
Floating Charging Voltage: 13.5–13.8V
Recharge Time: 4–6 hours (recover to 90% capacity)
Typical Battery Runtime

IT Load (100W): 30 min
50% Load: 5 min
75% Load: 1 min


Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.


Interface

On / Off Switch: Yes
Indicator: LED
Communication – USB: No
Communication – RS232: No
RJ11 Protection: No
Physical

Dimension (D x W x H): 297 × 101 × 142 mm
Weight: 4.7 kg
Package: Color box
Customer Service and Support

Warranty: 2 years
Part Numbers: 900VA / 480W
Schuko Outlets: 5A900I-DIN
