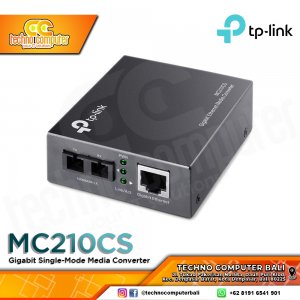

Media Converter TP-Link MC210CS Gigabit Single Mode - TPLink MCS 210CS

• 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Complies with IEEE 802.3ab and IEEE 802.3z
• Extends fiber distance up to 20km

MEDIA CONVERTER & MODULE
Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Basic Function :
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Extends fiber distance up to 20km
Ports :
1× 1000M SC/UPC port
1× 10/100/1000M RJ45 port (Auto MDI/MDIX)
Wave Length : 1310nm
Network Media 1000BASE-LX : Single-mode Fiber
Network Media 1000BASE-T :
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicators : PWR, Link/Act
Dimensions (W*D*H) : 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply : External Power Adapter
Max Power Consumption : 1.8W
Safety & Emission : FCC, CE, RoHS
Environment :
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
