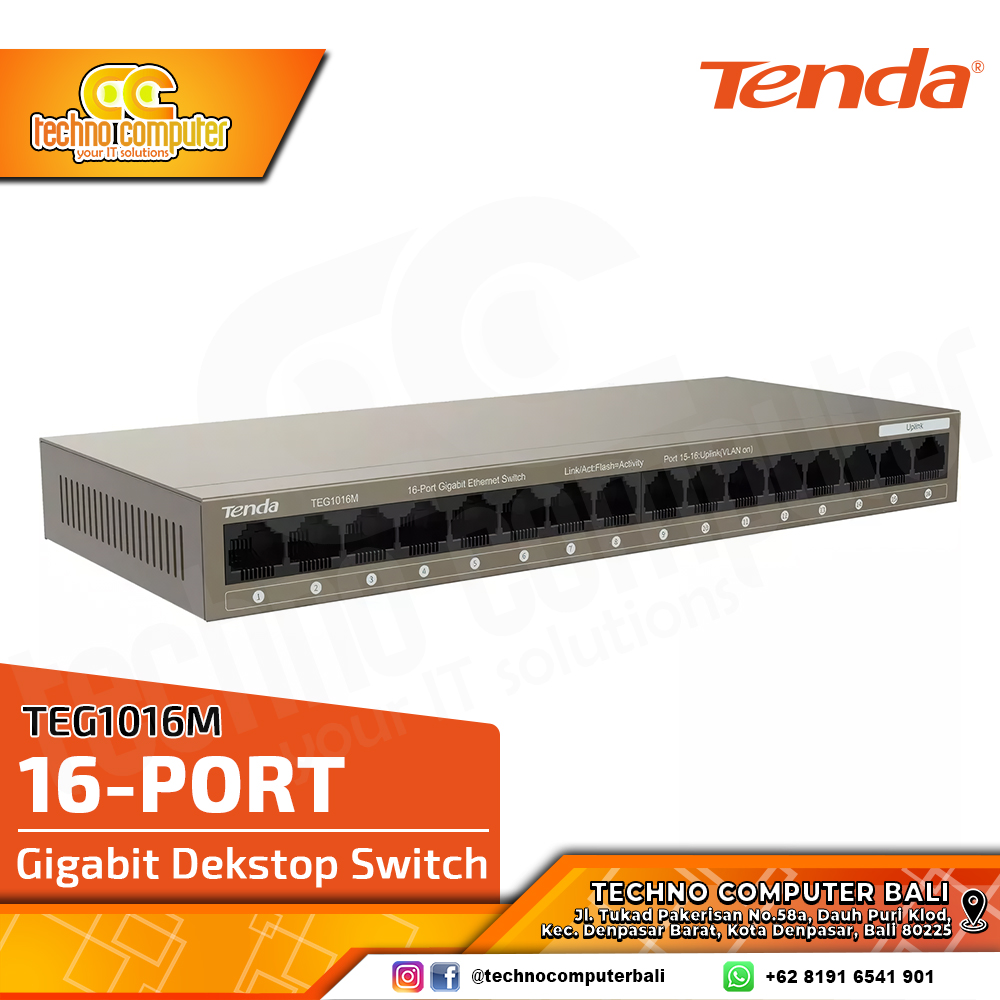

SWITCH 16 Port Tenda TEG1016M Gigabite Ethernet
--------------------
TEG1016M is a Gigabit unmanaged Ethernet switch developed by Tenda. Its full-duplex transmission rate can reach 2000 Mbps, ensuring timely transmission of large files and smoothness of videos. The switch features a mini steel shell, a fanless design, and wire-speed forwarding of all ports. It comes with a power adapter for power supply, and can connect to such network devices as computers and IP cameras. The switch also supports one-key isolation mode switching. With the advantages of plug and play functionality, easy installation and high performance, it offers a cost-effective solution for video surveillance and wired networking in such small and medium-sized scenarios as small and micro businesses, villas, and stores.

Spesifikasi :
Network standards :
-IEEE802.3
-IEEE802.3u
-IEEE802.3x
-IEEE802.3ab

LED Indicator :
-One Link/Act LED indicator for each Gigabit port
-One Power LED indicator for each device

Interfaces : 16*10/100/1000Base-T Ethernet ports
Transmission media :
-Ethernet: CAT3 UTP or better
-Fast Ethernet: CAT5 UTP or better
-Gigabit Ethernet: CAT5e UTP or better

Material : Metal
Level of protection :
-Lightning protection for port: 6 kV
-Lightning protection for power: N/A
-Electrostatic protection:
-Air discharge: 8 kV
-Contact discharge: 6 kV

Forwarding mode : Store-and-forward
Switch capacity : 32Gbps
Packet forwarding rate : 23.8Mpps
Buffer : 2Mb
MAC address table : 8K
Jombo frame : 10K

Power :
- Input: 100 - 240V AC 50/60Hz, 0.4A
- Output: 12V 1A
Power consumption : Max: <12 W

Mounting :
-Desktop mounting: support
-Wall mounting: support
