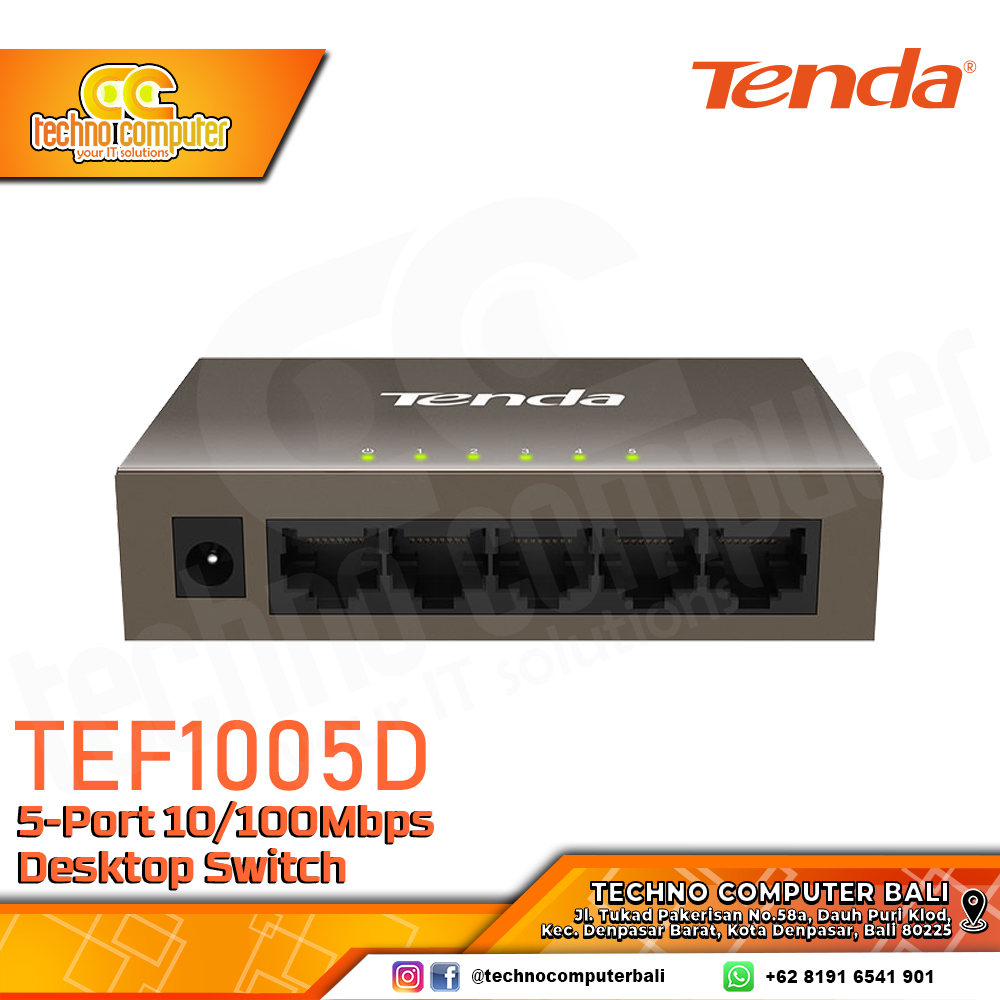

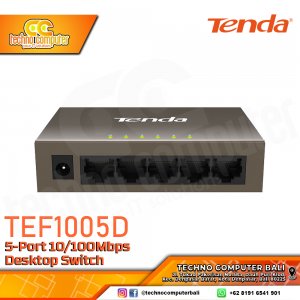

Tenda TEF1005D 5 * 10/100Mbps auto-negotiation RJ45 ports that support line-speed forwarding and large-capacity cache, ensuring smooth surveillance video playback and stable data transmission for 7x24.

Standar & ProtokolIEEE 802.3、IEEE 802.3u、IEEE 802.3x
Media Transmisi100BASE-TX: Cat.5, Cat.5e or Above（≤100m）UTP/STP
Antarmuka 5*10/100Mbps auto-negotiation RJ45 ports, auto MDI/MDIX
LED1*power LED，5*10/100Mbps Link/Act LEDs
Ukuran100mm×64mm×25mm(W*D*H)
Mode PengalihanStore-and-Forward
Tabel Alamat MAC 1K
Laju Pengalihan10BASE-T：14881pps/port
100BASE-TX：148810pps/port
Jaringan Backbound 1.0Gbps
Masukan Daya Listrik100~240V AC，50/60Hz
Hasil Daya Listrik5V DC，0.6A
SuhuOperation Temperature:-10°C~45°C
Storage Temperature:-40°C~70°C
KelembapanOperation Humidity:10%~90% RH（non-condensing）
Storage Humidity 5%~90% RH（non-condensing）
