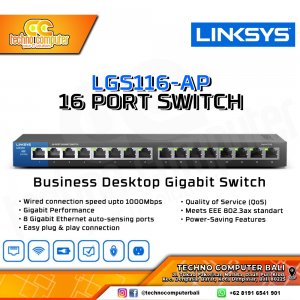

LGS116-AP merupakan tipe Unmanaged Switch ethernet seri Gigabit dari Linksys, yang memberikan konektivitas Gigabit Ethernet berkecepatan kabel, dengan memiliki 16 portuntuk koneksi Gigabit sesuai kebutuhan bisnis yang mudah untuk digunakan.

FITUR:
Kecepatan koneksi kabel hingga 1.000 Mbps
16port Gigabit Ethernet
Dapat menambahkan hingga lima perangkat ke jaringan lokal
Mudah pemasangan plug-and-play
QoS (Quality of Service)
Full-duplex IEEE 802.3x flow control and half-duplex backpressure
Bandwith 32 Gbps (non-blocking)
Port Auto-sensing secara otomatis mengoptimalkan kecepatan untuk setiap perangkat yang terhubung
Fitur Multiple power-saving
Memenuhi standar EEE (Energy Efficient Ethernet) 802.3az

SPECIFICATIONS:
Model Name:
LGS116
Network Standards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3az

Ports:
16 Gigabit Ethernet (10/100/1000) Ports
LEDs:
Link, speed, and activity indicators
Performance:
Full line rate and forwarding rate of 64B frame at:
1.488Mpps for 1000M port
0.1488Mpps for 100M port
0.01488Mpps for 10M port

MAC Address Table Size:
8K
Bandwidth:
32 Gbps (non-blocking)
Fans:
None
Minimum System Requirements:
Connected devices need Ethernet connectivity and Ethernet cables
Dimensions (LxWxH):
288 x 102 x 26 mm
Weight:
0.703 kg
Power:
12 VDC, 1 A
Power Consumption:
2.36W/8.01W

Power Consumption:
2.66 W / 9.32 W
Power Saving:
Cable connected detection, sleep mode
2 Monitors:
External
Operating Temperature:
0–50°C
Storage Temperature:
-40–70°C
Operating Humidity:
10–90% (non-condensing)
Storage Humidity:
10–90% (non-condensing)
Quality Of Service:
802.1p and DSCP
Regulatory Compliance:
FCC Class B, CE
