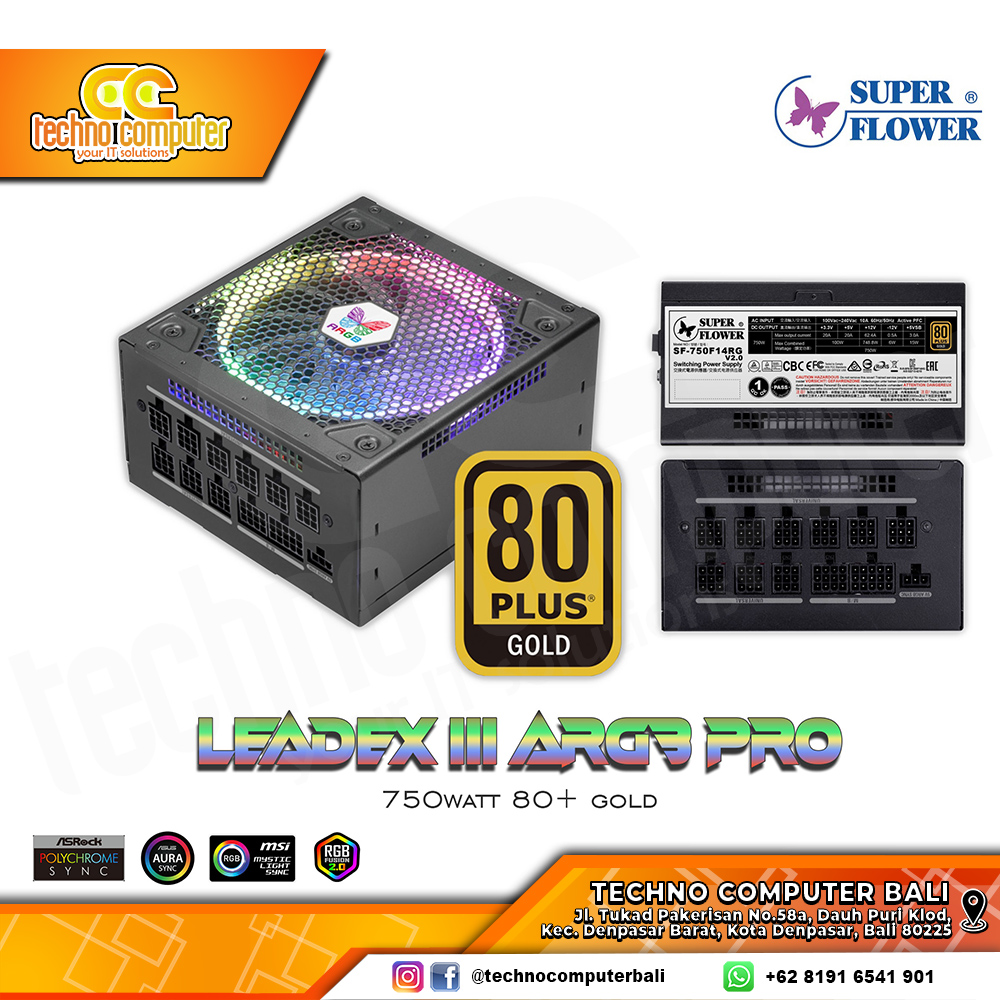

Model No. SF-750F14RG V2.0
Wattage 750W
80+ Efficiency 20%: 87% ; 50% : 90% ; 100% : 87% (115V Internal Gold)
Intel Power Design Guide V2.92
AC Input / Frequency 100V~240V | 60 / 50HZ
Fan Size 130mm F.D.B. Fan (RGB)
Dimension 160mm(L) x 150mm(W) x 86mm(H)
Protection OVP / OCP / Dual OPP / SCP / UVP / OTP / NLO / SIP
Safety cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI / RoHS/ KCC /CCC
Temperature Passed 50℃ Hot Testing
Cable Spec
20+4 Pin Full Modular 1 (600mm)
8 (4+4) Pin CPU 2 (700mm)
SLI (2 x PCI 6+2 Pin) 3 (550+150mm)
4SATA 1 (550+130+130+130mm)
3SATA 1 (550+130+130mm)
2SATA 1 (550+130mm)
4Molex 1 (550+150+150+150mm)
SF-750F14RG V2.0
750W AC INPUT 100V-240V~ 10A 60Hz/50Hz
DC OUTPUT +3.3V +5V +12V -12V +5VSB
Max output Current 20A 20A 62.4A 0.5A 3.0A
Max combined Wattage 100W 748.8W 6W 15W
750W
