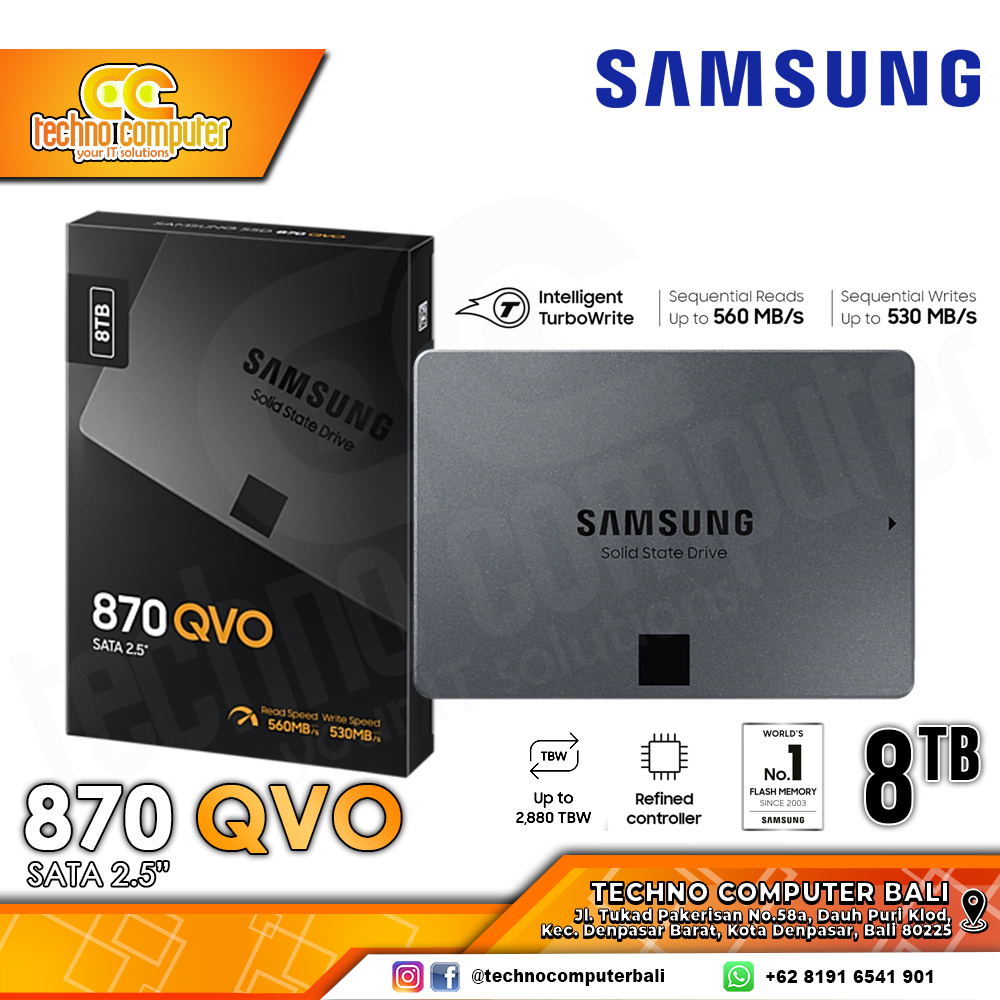

Specifications :

Model Code (Capacity) : 8TB

General Feature
APPLICATION : Client PCs
FORM FACTOR : 2.5 inch
INTERFACE : SATA 6 Gbps Interface (compatible with SATA 3 Gbps & 1.5 Gbps interfaces)
DIMENSION (WxHxD) : 100 X 69.85 X 6.8 (mm)
WEIGHT : Apporx. 57.0 g

STORAGE MEMORY : Samsung V-NAND 4bit MLC
CONTROLLER : Samsung MKX Controller
CACHE MEMORY : Samsung 8GB Low Power DDR4 SDRAM

Special Feature
TRIM SUPPORT : TRIM Supported
S.M.A.R.T SUPPORT : S.M.A.R.T Supported
GC (GARBAGE COLLECTION) : Auto Garbage Collection Algorithm
ENCRYPTION SUPPORT :
AES 256-bit Full Disk Encryption,
TCG/Opal V2.0,
Encrypted Drive (IEEE1667)

WWN SUPPORT : World Wide Name supported
DEVICE SLEEP MODE SUPPORT : Yes

Performance :
SEQUENTIAL READ : Up to 560 MB/s
SEQUENTIAL WRITE : Up to 530 MB/s

RANDOM READ (4KB, QD32) : Up to 98,000 IOPS
RANDOM WRITE (4KB, QD32) : Up to 88,000 IOPS

RANDOM READ (4KB, QD1 : Up to 11,000 IOPS
RANDOM WRITE (4KB, QD1) : Up to 35,000 IOPS

Environment
AVERAGE POWER CONSUMPTION (ACTIVE) : 2.4 W / 3.3 W (Read/Write)

POWER CONSUMPTION (IDLE) : 45 mW

POWER CONSUMPTION (DEVICE SLEEP : 10 mW

ALLOWABLE VOLTAGE : 5V ± 5% Allowable voltage
RELIABILITY (MTBF) : 1.5 Million Hours Reliability
OPERATING TEMPERATURE : 0°C to 70°C
SHOCK : 1,500 G & 0.5 ms (Half sine)

Accessories
INSTALLATION KIT : N/A

Software MANAGEMENT KIT : Magician Software for SSD management

Warranty :
MZ 77Q8T0 (8 TB) : 3 Year or 2,880 TBW
