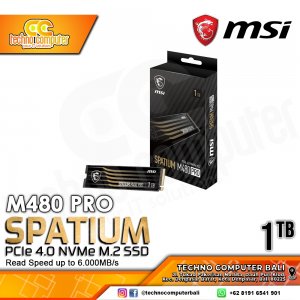

MODEL NAME : SPATIUM M480 PRO PCIe 4.0 NVMe M.2
CAPACITY : 1TB
CONTROLLER : PHISON E18
FLASH MEMORY : 3D NAND
DRAM CACHE : 1GB DDR4
FORM FACTOR : M.2 2280
INTERFACE : PCIe Gen4 x4, NVMe 1.4
COMPATIBILITY : PCIe Gen4 / Gen3 / Gen2 / Gen1
DIMENSIONS : 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
SEQUENTIAL READ UP TO (MB/S) : 7400
SEQUENTIAL WRITE UP TO (MB/S) : 6000
RANDOM READ 4KB UP TO (IOPS) : 750,000
RANDOM WRITE 4KB UP TO (IOPS) : 1,000,000
MAXIMUM OPERATING POWER (W) : 9.5
IDLE POWER PS3 (MW) : 40
LOW POWER L1.2 (MW) : 3
OPERATING TEMPERATURES : 0°C – 70°C
STORAGE TEMPERATURES : -40°C – 85°C
TERABYTES WRITTEN (TBW) : 700
MEAN TIME BETWEEN FAILURE (MTBF) : 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.
ADVANCED FEATURES :
TRIM (Performance Optimization, OS Support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
AES256/Pyrite (Encryption, Data Security)
