Specifications

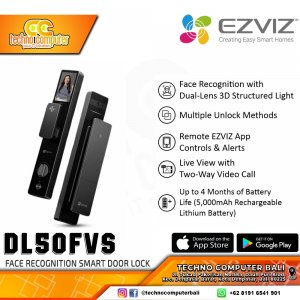

Model CS-DL50FVS

Material and Specification
Panel Material Aluminum alloy
Panel Size Front panel: 400 × 72 × 22.5 mm, Rear panel: 400 × 72 × 30.5 mm
Color Metallic grey
Lock Body Type Automatic Mechanical Detection lock body
Lock Cylinder C-level cylinder
Emergency Charging Type-C
Working Power 5000mAh rechargeable Lithium batteries

Technical Specification
Unlocking Method Face ID, Fingerprint, Passcode, Mechanical key, Bluetooth Key via EZVIZ App, Temporary codes, Remote unlock
User Capacity 50 pcs
Fingerprint Capacity 50 pcs
Passcode Capacity 50 pcs
Face ID 50 pcs
Communication Methods 2.4GHz Wi-Fi, Bluetooth
Screen (Not touchable） IPS / 4 inch
IP Grade IP54
Software Function Anti-peeping code, low battery warning, privacy mode, user management, real time notification, anti-test locking, anti-tamper alarm, remote control, video calling, voice changer, wandering detection
Supported Door Thickness
6068: 40-120 mm;

5085: 40-100 mm

Working Temperature -10°C~55°C
Operating Humidity 10%~95%

In the box
• Front Panel
• Rear Panel
• Hole Templet
• Lock Body
• Standard Screw Bag
• Lock Body Screw Bag
• Battery
• Key Bag
• Square Rod
• Stickers
• Regulatory Information
• Quick Start Guide
