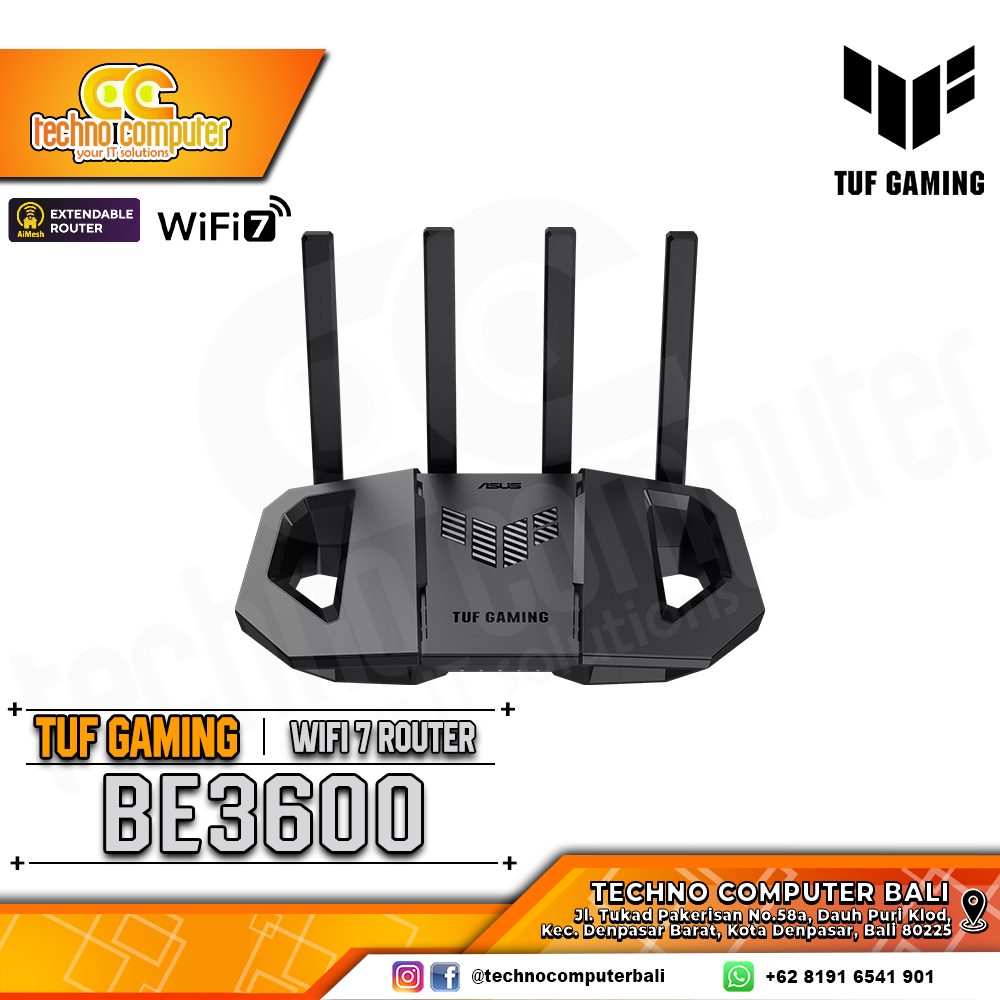

ASUS TUF Gaming BE3600 Specifications

• Network and Performance
Network Standards: IEEE 802.11a/b/g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), WiFi 7 (802.11be), IPv4, IPv6
Product Segment: BE3600 dual-band
WiFi Data Rate:
- WiFi 7 (802.11be) 2.4GHz: up to 688 Mbps
- WiFi 7 (802.11be) 5GHz: up to 2882 Mbps
Total Combined Speed: Up to 3600 Mbps
Antenna: 4 external fixed antennas
Transmit/Receive: 2.4GHz 2x2, 5GHz 2x2
Operating Frequency: Dual-band (2.4 GHz, 5 GHz)
Processor: 2.0 GHz quad-core CPU
Memory: 256 MB Flash, 1 GB DDR4 RAM

• Features and Technology
Technology: OFDMA, Beamforming (standard-based and universal), 4096-QAM high data rate, 20/40/80/160 MHz bandwidth.
Operating Modes: Wireless router mode, Access Point mode, Media Bridge mode.
Multi-Gig Connectivity: Features a 2.5G WAN/LAN port for high-speed internet or local network connections.
I/O Ports:
- 1x 2.5G WAN/LAN port
- 4x 1G LAN ports (one of which can be a dedicated gaming port)
- 1x USB 3.2 Gen 1 Type-A port
AiMesh: Supports AiMesh for creating a flexible mesh WiFi system.
Security: AiProtection Pro (lifetime free), WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, Firewall, Security Scan, VPN support.
Gaming Features: Dedicated gaming port that prioritizes gaming traffic, and a mobile game mode.
Parental Control: Allows for website/app filtering, time scheduling, and safe Browse.
Guest Network: Can create separate networks for guests with various security and access settings.

• Physical Information
Buttons: WPS Button, Reset Button, Power Switch
LED Indicators: Power, WAN, LAN, 2.4GHz WiFi, 5GHz WiFi
Power Supply: AC Input: 100V~240V (50~60Hz)
