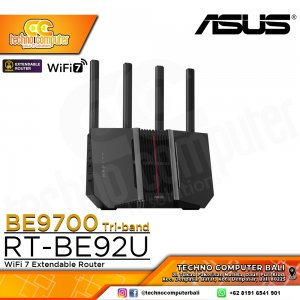

ASUS RT-BE92U Specifications

• Network and Performance
Network Standards: IEEE 802.11a/b/g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), WiFi 6E (802.11ax), WiFi 7 (802.11be), IPv4, IPv6
Product Segment: BE9700 ultimate BE performance
WiFi Data Rate:
- WiFi 7 (802.11be) 2.4GHz: up to 1032 Mbps
- WiFi 7 (802.11be) 5GHz: up to 2882 Mbps
- WiFi 7 (802.11be) 6GHz: up to 5764 Mbps
Total Combined Speed: Up to 9700 Mbps
Antenna: 4 external fixed antennas
Transmit/Receive: 2.4GHz 3x3, 5GHz 2x2, 6GHz 2x2
Operating Frequency: Tri-band (2.4 GHz, 5 GHz, 6 GHz)
Processor: 2.0 GHz quad-core processor
Memory: 256 MB Flash, 1 GB DDR4 RAM

• Features and Technology
Technology: OFDMA, Beamforming (standard-based and universal), 4096-QAM high data rate, and ultra-wide 320 MHz channels.
Multi-Link Operation (MLO): Enables buffering-free connections by combining and switching between the 2.4 GHz, 5 GHz, and 6 GHz bands.
Operating Modes: Wireless router mode, AiMesh node mode, access point mode, media bridge mode, repeater mode.
I/O Ports:
- 1x 10Gbps WAN/LAN port
- 1x 2.5Gbps WAN/LAN port
- 3x 2.5Gbps LAN ports
- 1x USB 3.2 Gen 1 Type-A port
AiMesh: Supports AiMesh for creating a flexible and scalable mesh network.
Security: AiProtection Pro (lifetime free), WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, Firewall, Security Scan, VPN support (including IPSec, L2TP, PPTP, OpenVPN, and WireGuard).
Parental Control: Allows for website/app filtering, time scheduling, and safe Browse.
Guest Network: Can create separate networks for guests with various security and access settings.

• Physical Information
Product Dimensions: 247.18 x 101.59 x 287.47 mm
Product Weight: 0.79 kg
Buttons: WPS Button, Reset Button, Power Switch
LED Indicators: Power, WAN, LAN, 2.4GHz, 5GHz, 6GHz
