General

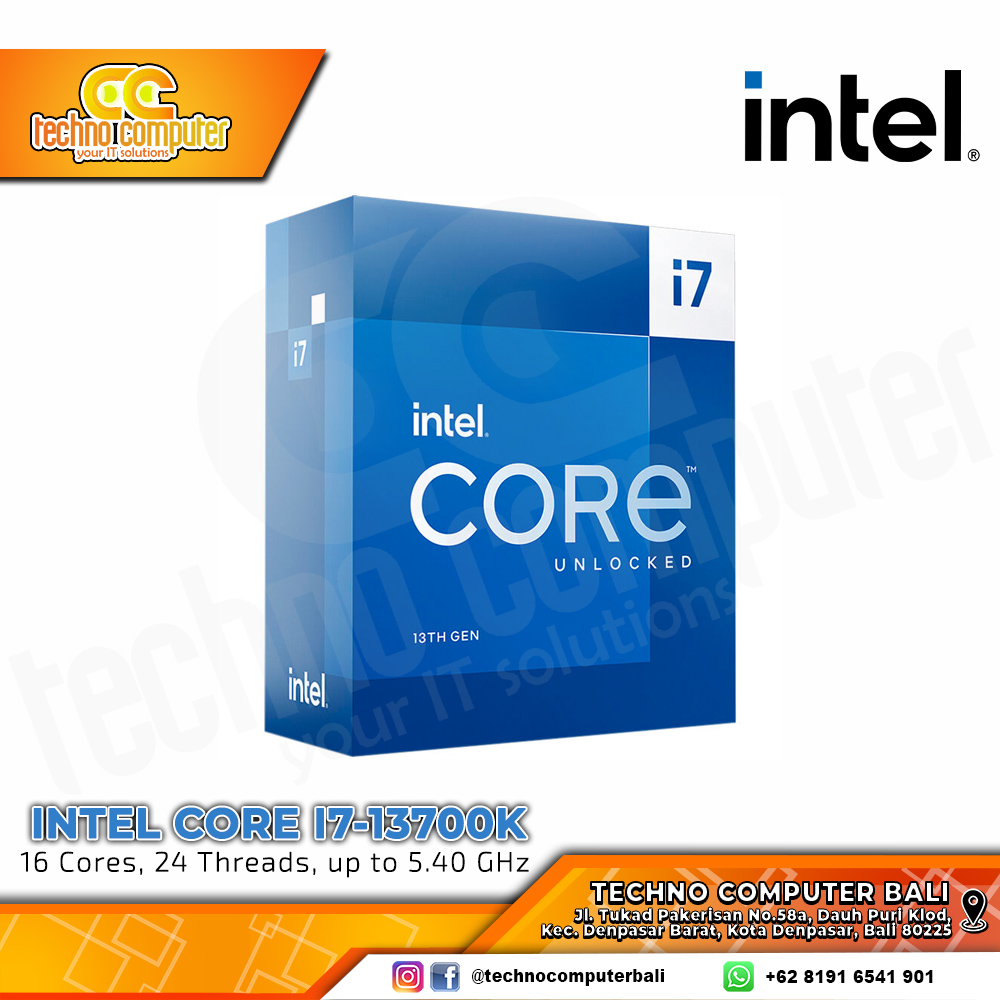

CPU Model: Intel Core i7-13700K (13th Gen)
CPU Socket: LGA 1700
Manufacturing Process: 10 nm
Maximum CPU Configuration: 1S
Maximum Number of PCIe Lanes:
16 (Revision 5.0)
4 (Revision 4.0)
Unlocked: Yes

Performance
Number of Cores: 16 (8 x P-Cores + 8 x E-Cores)
Number of Threads: 24
Base Clock Speed:
P-Core: 3.4 GHz
E-Core: 2.5 GHz
Maximum Boost Speed:
P-Core Turbo: 5.3 GHz
E-Core Turbo: 4.2 GHz
L3 Cache: 30 MB

Memory Support
Maximum Capacity: 128 GB
Memory Support:
DDR5 5600 MHz
DDR4 3200 MHz
ECC Memory: Yes
Channel Architecture: Dual Channel
Optane Memory Support: Yes

Power
Thermal Design Power (TDP): 125 W
Included Thermal Solution: None
Maximum Temperature: 212°F / 100°C
Thermal Monitoring Technologies: Yes

Integrated Graphics
Integrated Graphics: Intel UHD Graphics 770
Maximum Resolution Support: 7680 x 4320 at 60 Hz
Supported APIs:
DirectX: 12
OpenGL: 4.5
Number of Displays: 4
Output Support: DisplayPort, HDMI
Base Clock Speed: 300 MHz
Maximum Boost Speed: 1.45 GHz
