SPESIFIKASI:

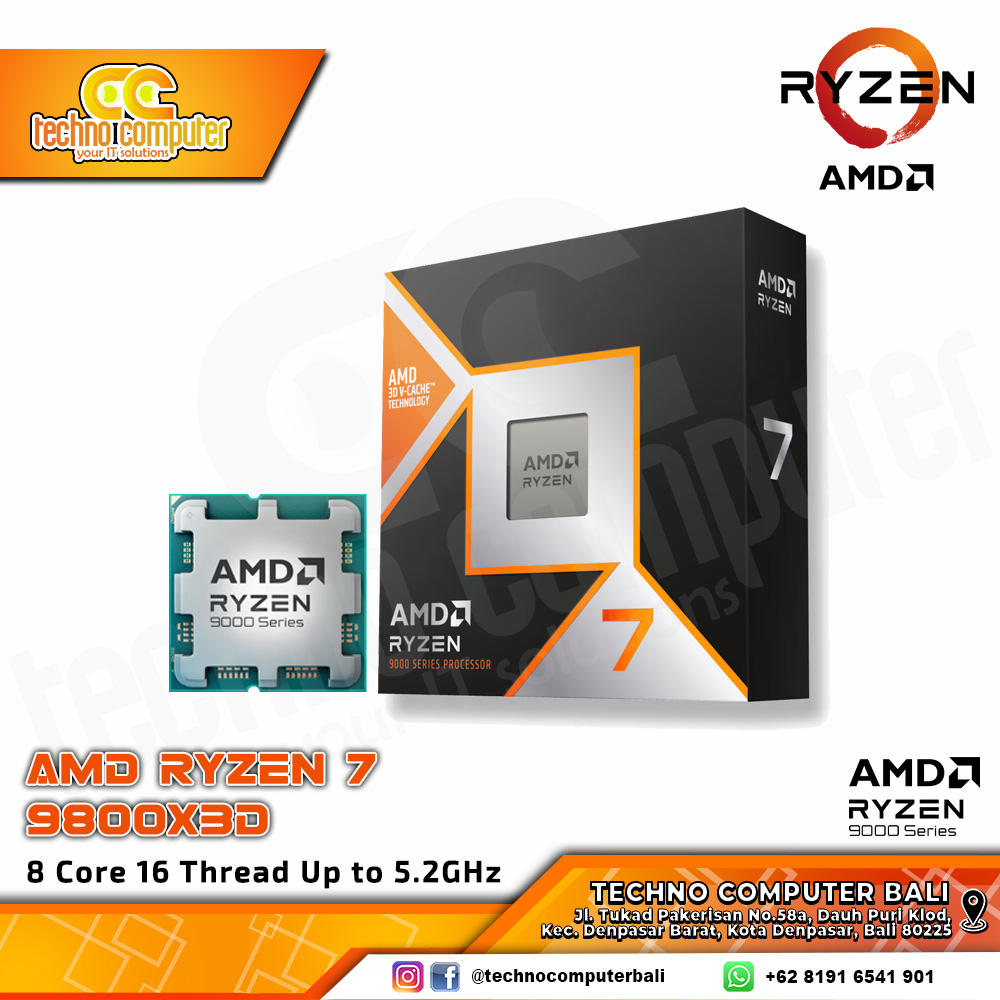

● Name AMD Ryzen™ 7 9800X3D
● Family Ryzen
● Series Ryzen 9000 Series
● Form Factor Desktops , Boxed Processor
● Market Segment Enthusiast Desktop
● AMD PRO Technologies No
● Consumer Use Yes
● Regional Availability Global
● Former Codename Granite Ridge AM5
● Architecture Zen 5
● # of CPU Cores 8
● Multithreading (SMT) Yes
● # of Threads 16
● Max. Boost Clock Up to 5.2 GHz
● Base Clock 4.7 GHz
● L1 Cache 640 KB
● L2 Cache 8 MB
● L3 Cache 96 MB
● Default TDP 120W
● Processor Technology for CPU Cores TSMC 4nm FinFET
● Processor Technology for I/O Die TSMC 6nm FinFET
● Package Die Count 2
● Unlocked for Overclocking Yes
● AMD EXPO™ Memory Overclocking Technology Yes
● Precision Boost Overdrive Yes
● Curve Optimizer Voltage Offsets Yes
● AMD Ryzen™ Master Support Yes
● CPU Socket AM5
● Supporting Chipsets A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
● CPU Boost Technology Precision Boost 2
● Instruction Set x86-64
● Supported Extensions AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
● Thermal Solution (PIB) Not Included
● Recommended Cooler Liquid cooler recommended for optimal performance
● Max. Operating Temperature (Tjmax) 95°C
● *OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
● Native PCIe® Lanes (Total/Usable) 28 , 24
● Graphics Model AMD Radeon™ Graphics
● Graphics Core Count 2
● Graphics Frequency 2200 MHz
● USB Type-C® DisplayPort™ Alternate Mode Yes
