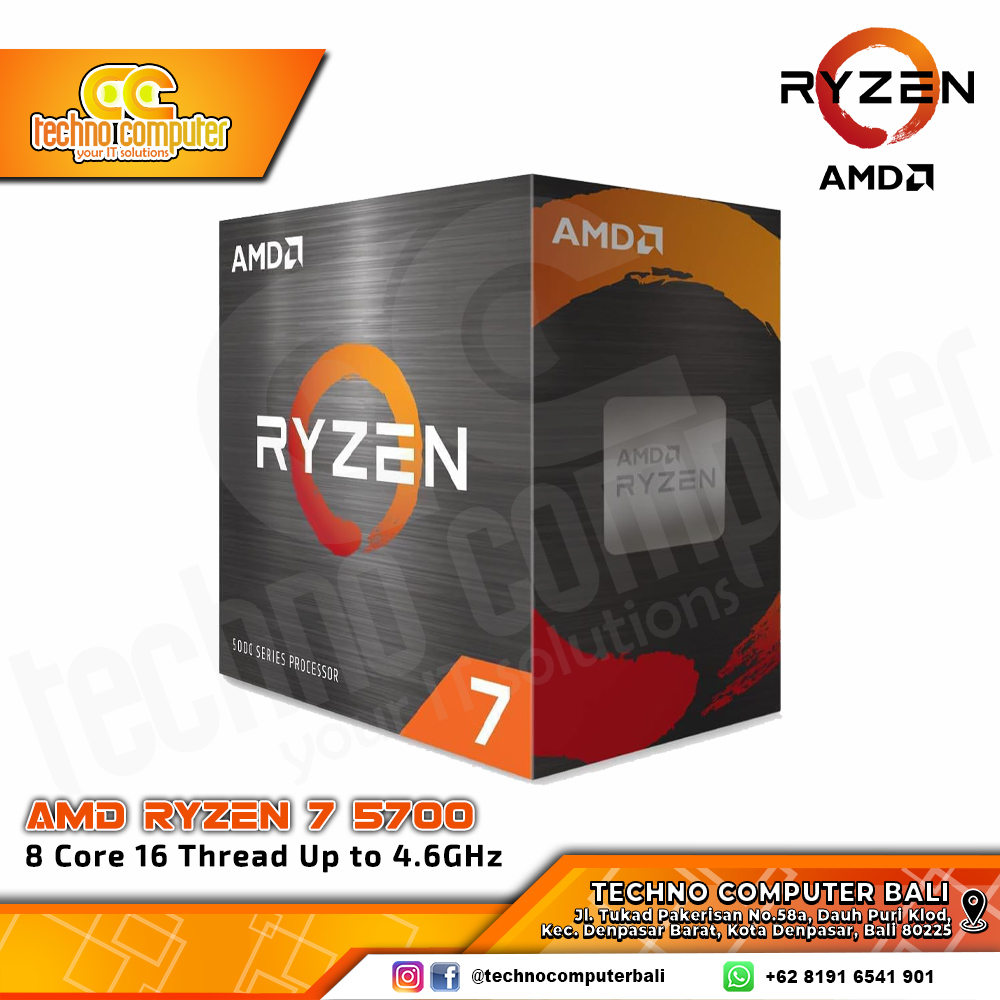

Processor AMD RYZEN 7 5700 BOX 100-100000743BOX
--------------------

Specifications

Platform : Boxed Processor
Product Line : AMD Ryzen™ 7 Desktop Processors
AMD PRO Technologies : No
Former Codename : "Cezanne"
Architecture : "Zen 3"
# of CPU Cores : 8
# of Threads : 16
Max. Boost Clock : Up to 4.6GHz
Base Clock : 3.7GHz
L1 Cache : 512KB
L2 Cache : 4MB
L3 Cache : 16MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 7nm FinFET
CPU Compute Die (CCD) Size : 180mm²
Package Die Count : 1
CPU Socket : AM4
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Max. Operating Temperature (Tjmax) : 95°C

OS Support
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit

Connectivity
USB Type-C® Support : Yes
Native USB 3.2 Gen 2 (10Gbps) Ports : 4
PCI Express® Version : PCIe® 3.0
Native PCIe® Lanes (Total/Usable) : 24 / 20
NVMe Support : Boot, RAID0, RAID1, RAID10
System Memory Type : DDR4

Graphics Capabilities
Graphics Model : Discrete Graphics Card Required

Limited Warranty 3-Year
