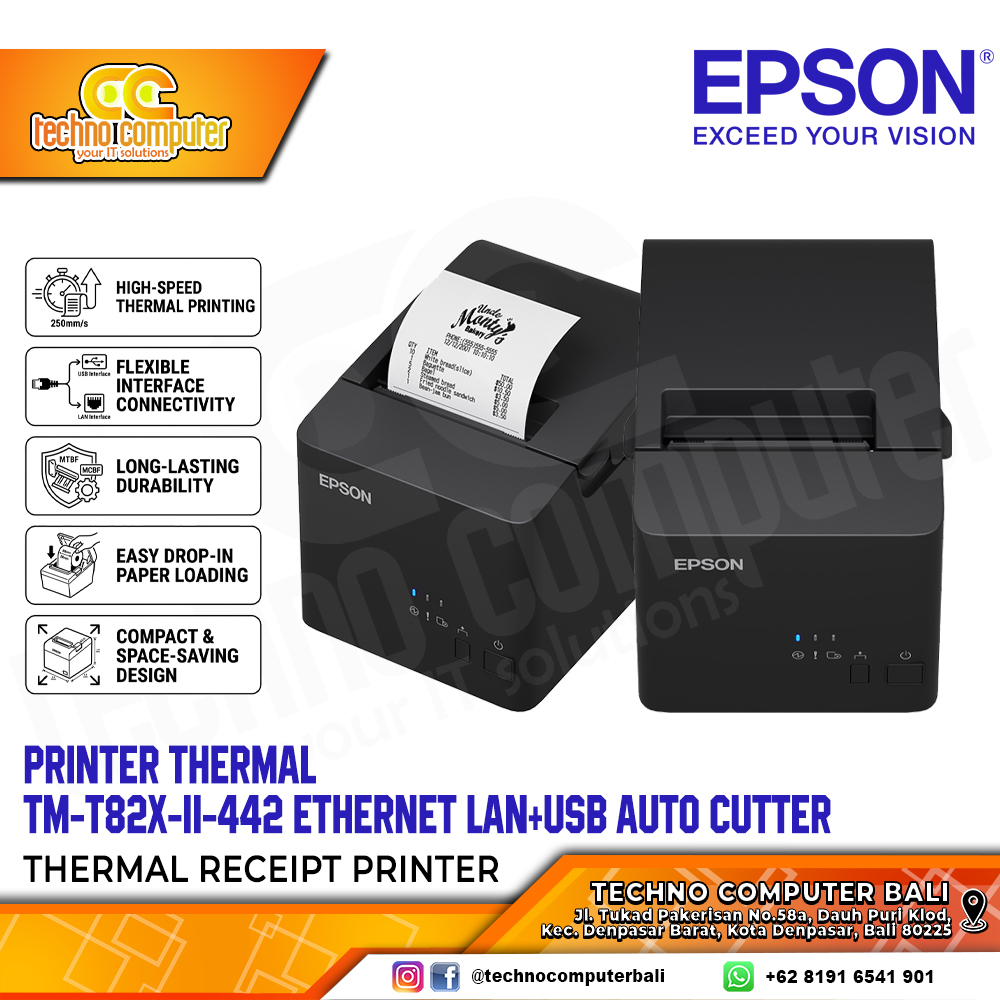

PRINTER EPSON TM T82X-II-422 Ehternet LAN
-----------


General Information
Printer Driver :
Windows Driver (APD), OPOS, OPOS.NET, JavaPOS (Windows, Linux), CUPS Driver (Linux), Mac Driver, TM Virtual Port Driver, ePOS SDK (iOS, Android)
Sensors : Paper End, Cover Open
LED Indicators :
Blue LED - Power
Orange LED - Error, Paper Out
Built-in Feature : Paper Saving Function, Automatic Paper Cut with logo printing
Utility Tools : Deployment Tool, Monitoring Tool, TM-T82X-II Utility


Print Font:
Font : 9 x 17/12 x 24, Font Hanji: 24 x 24, Font Thai: 9 x 35/12 x 46 (Thai 1 pass)
Ukuran Karakter (L x T) : 0,88 x 2,13 mm/1,25 x 3 mm, Font Hanji: 3 x 3 mm, Font Thai: 0,88 x 4,38 mm/1,25 x 5,76 mm (Thai 1 pass)
Set Karakter : 95 Alfanumerik, 18 set Internasional, 128 x 43 halaman (termasuk halaman yang ditentukan pengguna) Hanzi: Bahasa Mandarin Sederhana: GB18030-2000: 28,553
Barcode: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), KODE39, ITF, CODABAR(NW-7), KODE93, KODE128, GS1-128, GS1 DataBar
Kode dua dimensi: PDF417, Kode QR, Kode Maxi, 2D GS1 DataBar, Simbologi Komposit
Characters Per Line : 22,6cpi/16,9cpi, Font Hanji: 7,8cpi, Font Thai: 22,6cpi/16,9cpi
Barcode :
UPC-A, UPC-E, JAN8 / EAN 8, JAN13 / EAN13, Code39, Code93,
Code 128, Code128 auto, ITF, Codabar (NW-7), GS1-128, GS1 DataBar
Supported Language : ANK + Thai / Viet + Simplified Chinese

Data Buffer: 4KB or 45byte

Kecepatan Cetak: 250 mm/s

Paper
Kertas Gulung :
Option 1: 79.5 ± 0.5 mm (W) x Dia. 83 mm
Option 2: 57.5 ± 0.5 mm (W) x Dia. 83 mm
Width and Roll Diameter : 79.5 ± 0.5 (W) × dia. 83.0; 57.5 ± 0.5 (W) × dia. 83.0

Overall Dimensions (D x W x H): 199 x 140 x 146 mm
Printing Method: Garis termal Pencetakan
Dot / Line: 576 dots (80mm), 420 dots (58mm)
Dot Density: 203 x 203 dpi

Antarmuka: USB Bawaan + UIB (antarmuka Serial atau Paralel), antarmuka Ethernet
Fixed Interface Model : Fixed Interface Model

Reliabilitas
MTBF : 360.000 jam
MCBF : 60.000.000 baris
Printer Mechanism Life : 15 juta baris
Auto Cutter Life : 1.5 juta potongan
Thermal Printhead Life : 100 km
Receive Data Buffer: 4 KB or 128 KB
Resolution: 203 x 203 dpi
Operating Temperature: 5 - 45° C (41 - 113° F)
Noise Level: Operating: 55 dB
Humidity: 10 - 90% RH
Cutting: Auto Cutter. Partially cuts the paper (one point left uncut in center)
Operating Voltage: AC100 to 240V

Konsumsi Daya:
Operasi :
Option 1: Approx. 27.7W
Option 2: Approx. 31.3W
Siaga : Approx. 0.96 W
