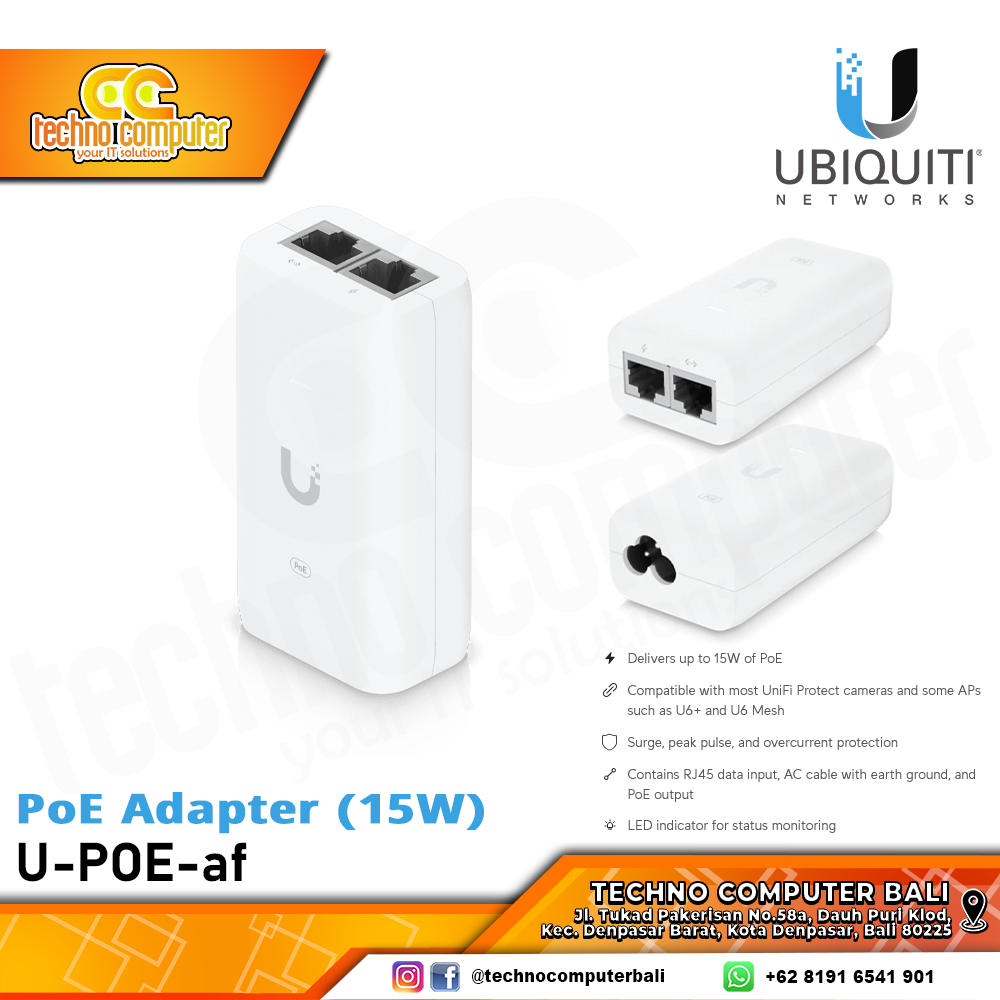

UBNT UBIQUITI PoE Adapter U POE af EU
--------------------

Specification

Model : U-POE-af
Dimensions : 86 x 46 x 33 mm (3.39 x 1.81 x 1.30")
Weight : 100 g (3.53 oz)
Output voltage : 48V DC @ 0.32A
LAN activity indicator : No
Gigabit LAN port : Yes
Remote reset capability : No
Reset Button : No
Rated voltage : 100—240V AC @ 50/60Hz
Input current : 500mA Max.
Inrush current : <100A Peak at 25°C
Efficiency : 84.25+%
Output ripple : 200mV p-p
Switching frequency : 65 kHz
Line regulation : ≤ 3%
Load regulation : ≤ 5%
2-pair powering : Pins 4, 5 (+) and 7, 8 (-)
4-pair powering : No
AC connector : IEC-320 C6
Data In / PoE : RJ45 shielded socket
Surge protection : Difference and common mode
Clamping protection : 11V data, 60V power
Max. surge discharge : 1500A (8/20 μs) power
Peak pulse current : 36A (10/1000 μs) data
Shunt capacitance : <5 pF data
Response time : <1 ns
Ambient operating temperature : 0 to 40° C (32 to 104° F)
Storage temperature : -30 to 70°C (-22 to 158° F)
Ambient operating humidity : 10 to 95% noncondensing
Certifications : CE, FCC, IC, UL

Garansi 1 Tahun
