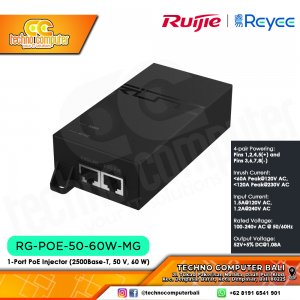

RG-POE-50-60W-MG, 1-Port PoE Injector (2500Base-T, 50 V, 60 W)

Highlight Features
• Stable and high-performance power supply to the AP
• Wide operating temperature range from -10℃ to +45℃
• High surge protection rating

Products Compatible
• WALL AP: RG-RAP2260(H)
• CEILING AP: RG-RAP2200(F), RG-RAP2200(E), RG-RAP2260(G), RG-RAP2260, RG-
• OUTDOOR AP: RG-RAP6260(H), RG-RAP6260(H)-D

Key Specification
Output Voltage: 56 V DC @ 1.08 A
Port: 1 x 2500Base-T port
Rated Voltage: 100-240 V AC @ 50/60 Hz
Input Current: Max. 0.5 A
Inrush Current: < 80 A @ 230 V AC
Operating Temperature: -10°C to +45°C (14°F to 113°F)
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
Dimensions: 137.4 x 62.3 x 32.6 mm (5.41 x 2.45 x 1.28 in.)
Weight: 225 g (7.94 oz)
Surge Protection: 65 V
Max. Discharge Current: 500 A (8/20 µs)
Warranty: 3 years
