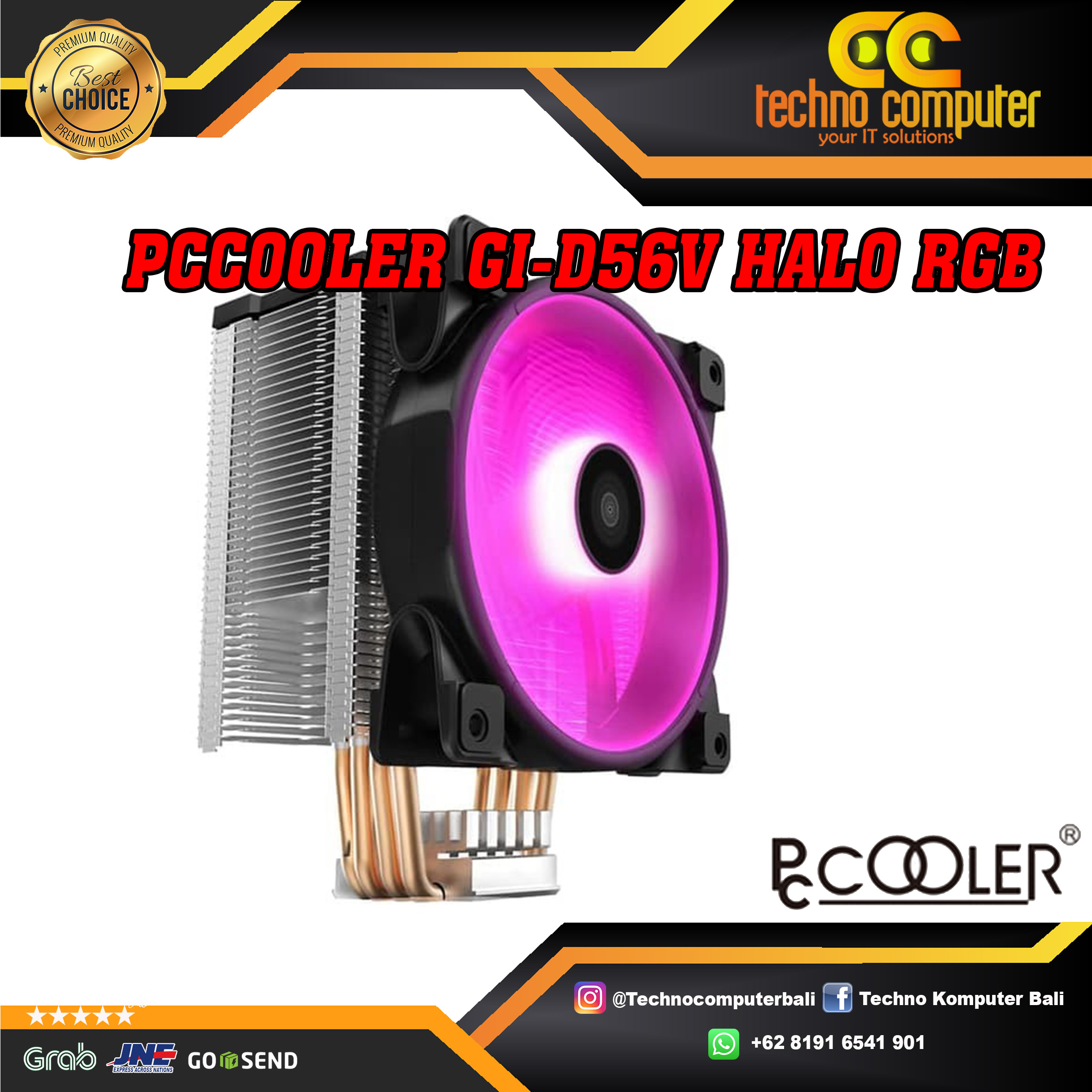

CPU Compatibility Intel LGA2066/1200//2011/1150/1151/1155/1156/775/1366
AMD AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
TDP 160W
Overall Dimension 126(L)X85(W)X148(H)mm
Heatsink Material Aluminum
Heat Base Material 45X38mm HDT(Heat pipes Direct Touch)
Heat Pipes 5X6mm Copper powder heat pipes 3*U type + 2*L type
Surface Treatment Anti-oxidation Protective Layer
Weight/Loading 720g 530*480*470mm 24Pcs/CTN
RGB Version AURA 12V 4Pin
Fan Dimension 120×120×25mm
Included Fans 1pcs
Fan Speed 1000~2000±10%RPM
Max. Air Flow 72CFM
Max. Static Pressure 2.36mmH2O
Noise 8~29.1dB(A)
Rated Voltage 12VDC
Operating Voltage 8~13.2VDC
Started Voltage 7.5VDC
Rated Current 0.22~0.39A(Fan Moto)+0.3A(RGB)
power Input 4.7W+1.5W
Bearing Type Hydraulic Bearing
