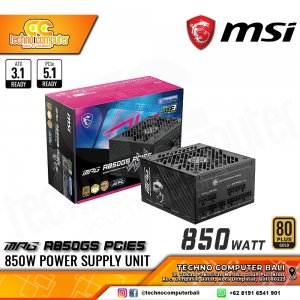

Model Name: MPG A850GS PCIE5
● FEATURES
Supports Nvidia GeForce RTX 50 Series Graphics Cards
Native 12V-2x6 Connector
Dual-Color 12V-2x6 Cable
80 PLUS Gold Certified
The Lowest Sound Level, Cybenetics A++ Certification
100% All Server-Grade 105°C Capacitor
Embossed Jacket Cables for Better Bending & Routing

● SPECIFICATIONS
Efficiency Rating: 80 PLUS Gold (up to 90%)
Modular: Yes (Full Modular)
Fan Size: 135 mm
Fan Bearing: Fluid Dynamic Bearing
Dimensions (DxWxH): 150 x 150 x 86 mm
PFC Type: Active PFC
Input Voltage Range: 100-240V~
Power Watt: 850W
Power Excursion: 1700W (*up to 200% of the PSU's rated power for 100μs*)
Input Frequency Range: 50-60 Hz

● PROTECTION FEATURES
OCP (Over Current Protection)
OTP (Over Temperature Protection)
OPP (Over Power Protection)
SCP (Short Circuit Protection)
OVP (Over Voltage Protection)
UVP (Under Voltage Protection)
SIP (Surge & Inrush Protection)
NLO (No Load Operation)

● CONNECTORS
ATX (24 pin): 1
EPS (4+4 pin): 2
PCI-E 5.1 (16 pin): 1 (600W)
PCI-E (6+2 pin): 3
SATA (15 pin): 8
PERIPHERAL (4 pin): 4
