Specifications:

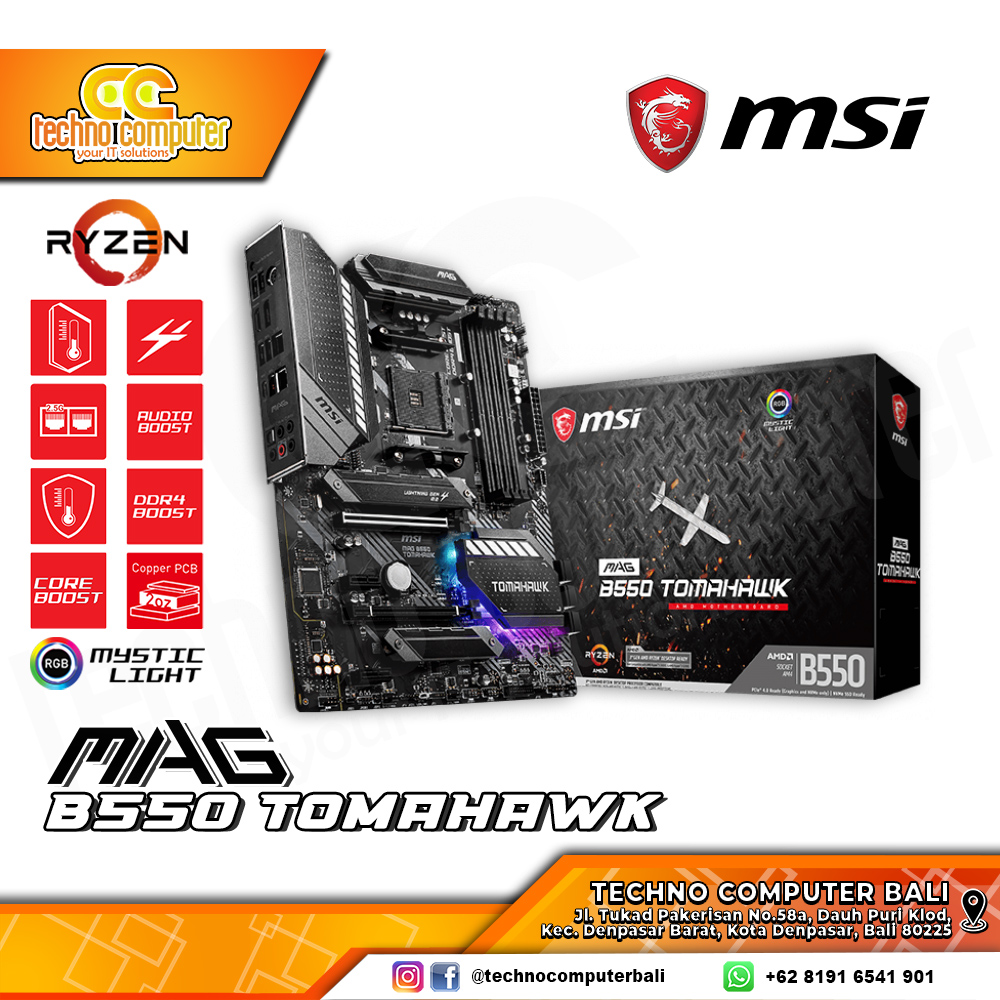

Model Name: MAG B550 TOMAHAWK
CPU Support: 3rd Gen AMD Ryzen™ processors and future AMD Ryzen™
processors with BIOS update
CPU Socket: AMD Socket AM4
Chipset: AMD B550 Chipset
Graphics Interface:
1x PCI-E 4.0 x16 slot
1x PCI-E 3.0 x16 slot
Support 2-way AMD CrossFire™ Technology
Display Interface: DisplayPort, HDMI – Requires Processor Graphics
Memory Support: 4 DIMMs, Dual Channel DDR4-4866+(OC)Mhz
Expansion Slots: 2x PCI-E 3.0 x1 slots
Storage: 2x M.2 slots, 6x SATA 6Gb/s
SATA RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage
devices
USB Ports: 2x USB 3.2 Gen 2 10Gbps (1 Type-C + 1 Type-A)
5x USB 3.2 Gen 1 5Gbps (1 Type-C + 4 Type-A)
6x USB 2.0
LAN: Realtek® RTL8125B 2.5G LAN
Realtek® RTL8111H Gigabit LAN
Audio: 8-Channel(7.1) HD Audio with Audio Boost(ALC1200)
