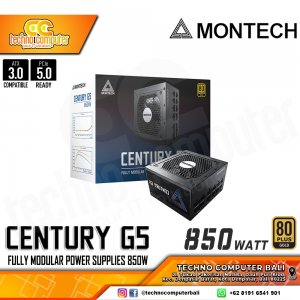

Power Supply Montech Century G5 850W 80 PLUS Gold

80 PLUS Gold |
ATX 3.0 & PCIe Gen 5.0 Ready
12+4 pin 12VHPWR Connector
100% Japanese Capacitor
DC-DC
Fully-Modular cable
120mm thermal FDB fan
5 Years Warranty

Specifications
Product Name CENTURY 850
ATX Version ATX12V
PFC Active PFC (>0.9 typical)
Input Voltage 100-240Vac
Input Current 12A
Input Frequency 47-63Hz
Dimensions (L*B*H) 140*150*86mm
Fan Size 120mm ( FDB Fan )
Hold Up Time 10msec (minimum) at 80% of full load at 230Vac input.
Efficiency 90% Typically
MTBF >100,000 Hours
Operating Temperature 0-45°C
Protections OCP/OVP/UVP/OPP/SCP/OTP
Regulatory cTUVus / TUV / CB / CE / RoHS / FCC

Connectors:
M/B 20+4Pin 1
CPU 4+4Pin 2
PCIE 6+2 6
SATA 10
Molex 4Pin 3
FDD 1

AC Input 100-240Vac 47-63Hz 12.0A
DC Output +3.3V +5V 12V -12V +5VSB
Max. Output Current 20A 20A 70.5A 0.3A 2.5A
Max. Output Power 110W 846W 3.6W 12.5W
Total POWER 850W
