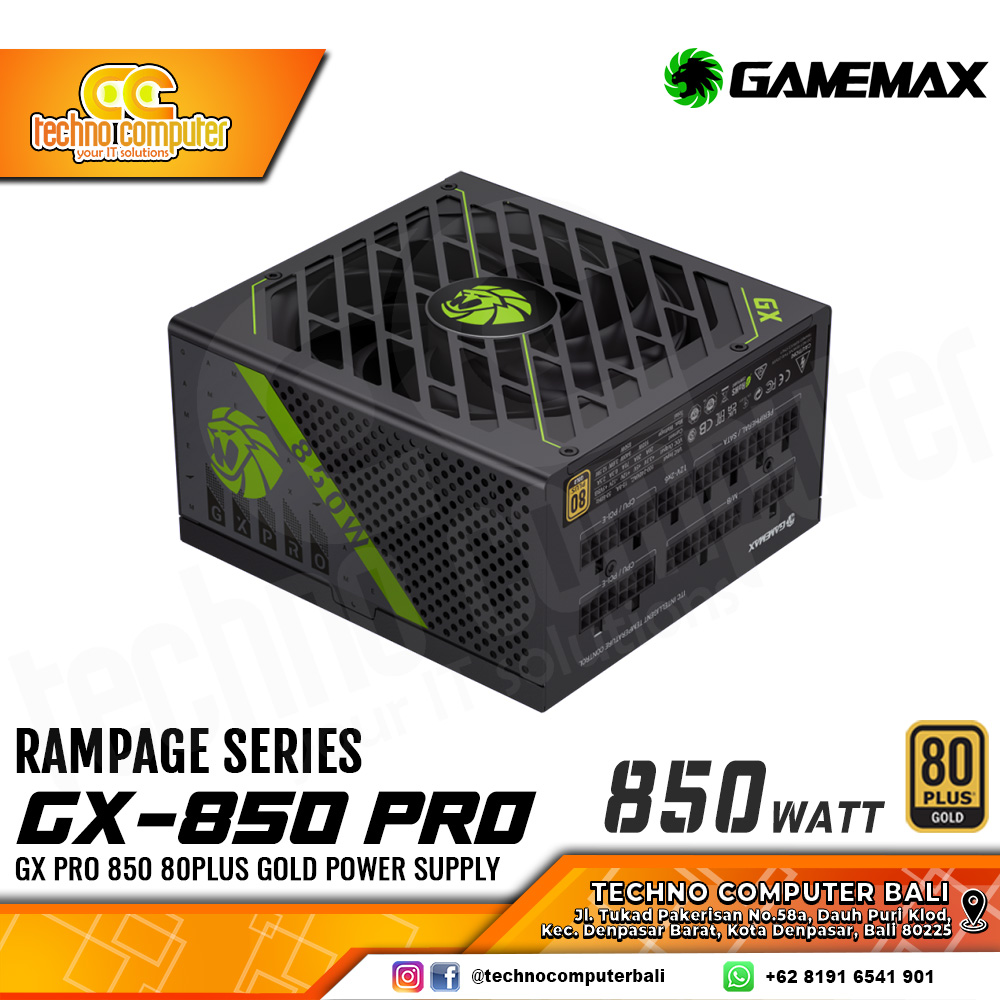

GameMax RPG(Rampage) Gold series GX-850 PRO 80+ Gold ATX3.0, PCIe5.0 Power supply, directly link RTX40 GPU cards! Without current loss compared with an old adapter cable technology! designed with stability and durability, GX RPG Series is the perfect choice to power your systems!
Programming LLC MPS1213 Chipset LLC, More flexible than traditional LLC circuit design, Using software programming can make the entire LLC resonant circuit work in the best state. Good efficiency performance at light load and full load.
DC-DC is controlled by the UP3861 chip. The 3.3V and 5V drive outputs form a 180-degree phase difference. more stable and the ripple noise is effectively reduced
PCIE5.0 ready, Directly link by 12VPHWR connector, Provide 600W to GPU card! Additional along with rich connectors on backplane
MPS6924 chip for synchronous rectification, which makes the synchronous rectification MOS tube always work in the best state and further improves the overall efficiency.
Integrated all solid capacitors, Free-Cable module output, lower loss power
105℃ main Japanese capacitor has a long life and smooth output
100-240Vac full voltage input, Applicable voltage worldwide
The temperature-controlled turbocharged axial fan is extremely quiet
Total SIX levels of protection, OTP, OCP, SCP, OVP, UVP, OPP
All black flat pure copper output cables, efficient and powerful
Components by SMT produced, Quick 3D heat dissipation and more stable

PSU Type： ATX
Cabling： Modular
Efficiency： 90+ Gold

Spesifikasi:
Model: GX-850 Pro
Type: 80Plus Gold Full Modular
Size: 160x150x86
Efficiency: 90%
Wattage: 850W
Voltage Input: 100 - 240V
Temperatur Control: Support
PFC Type: APFC
Safety Certificate: CE, FCC, CB, EAC, UKrTEST, RoHS, CCC

Cable:
Mainboard 20+4Pin : 1
CPU 4+4Pin : 2
PCI-E 6+2Pin : 4
12VHPWR PCIe50 : 1
SATA: 6
Molex: 3
