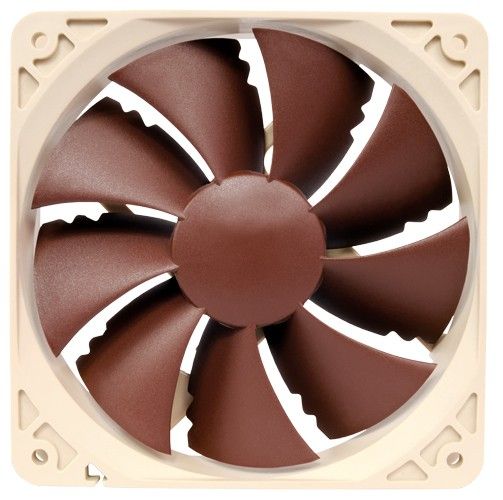

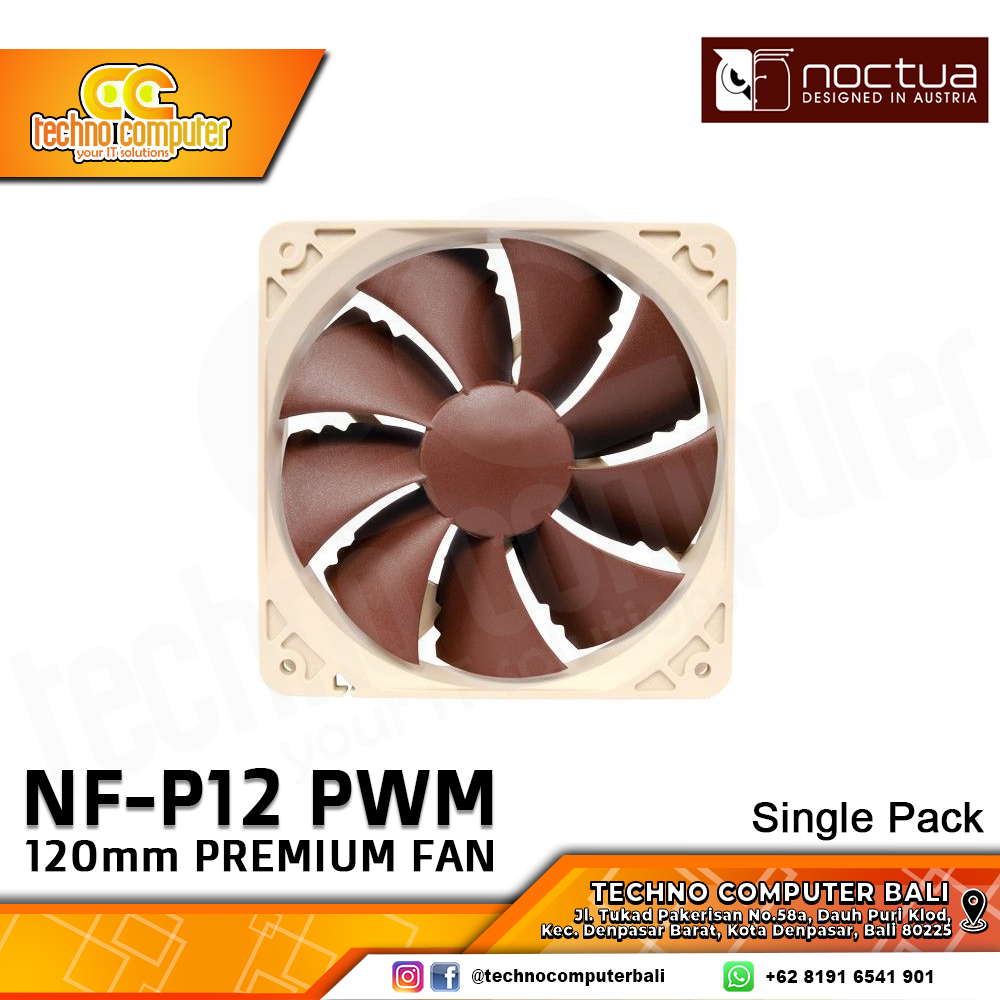

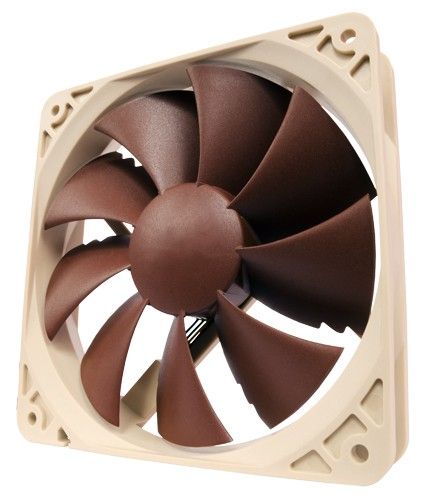

FAN Specification
Size : 120x120x25 mm
Mounting hole spacing : 105x105 mm
Connector & pin-configuration : 4-pin PWM
Bearing : SSO-Bearing
Blade geometry : Presure-optimized Nine Blade Design with Vortex-Control Notches
Rotational speed (+/- 10%) : 1300 RPM
Rotational speed with L.N.A. (+/- 10%) : 900 RPM
Min. rotational speed @ 20% PWM (+/-20%) : 300 RPM
Airflow : 92,3 m³/h
Airflow with L.N.A. : 63,4 m³/h
Acoustical noise : 19,8 dB(A)
Acoustical noise with L.N.A : . 12,6 dB(A)
Static pressure : 1,68 mm H₂O
Static pressure with L.N.A. : 1,21 mm H₂O
Input power (max.) : 0,6 W
Input current (max.) : 0,05 A
Operating voltage : 12 V
MTTF : > 150.000 h

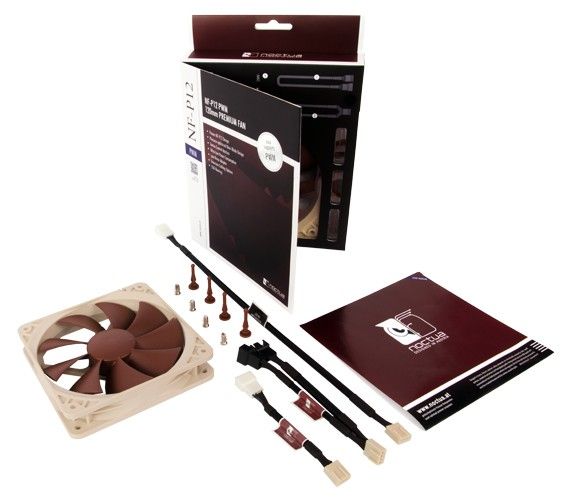

Scope of delivery :
Low-Noise Adapter (L.N.A.)
4-Pin Y-Cable
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws
