𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

PRODUCT NAME

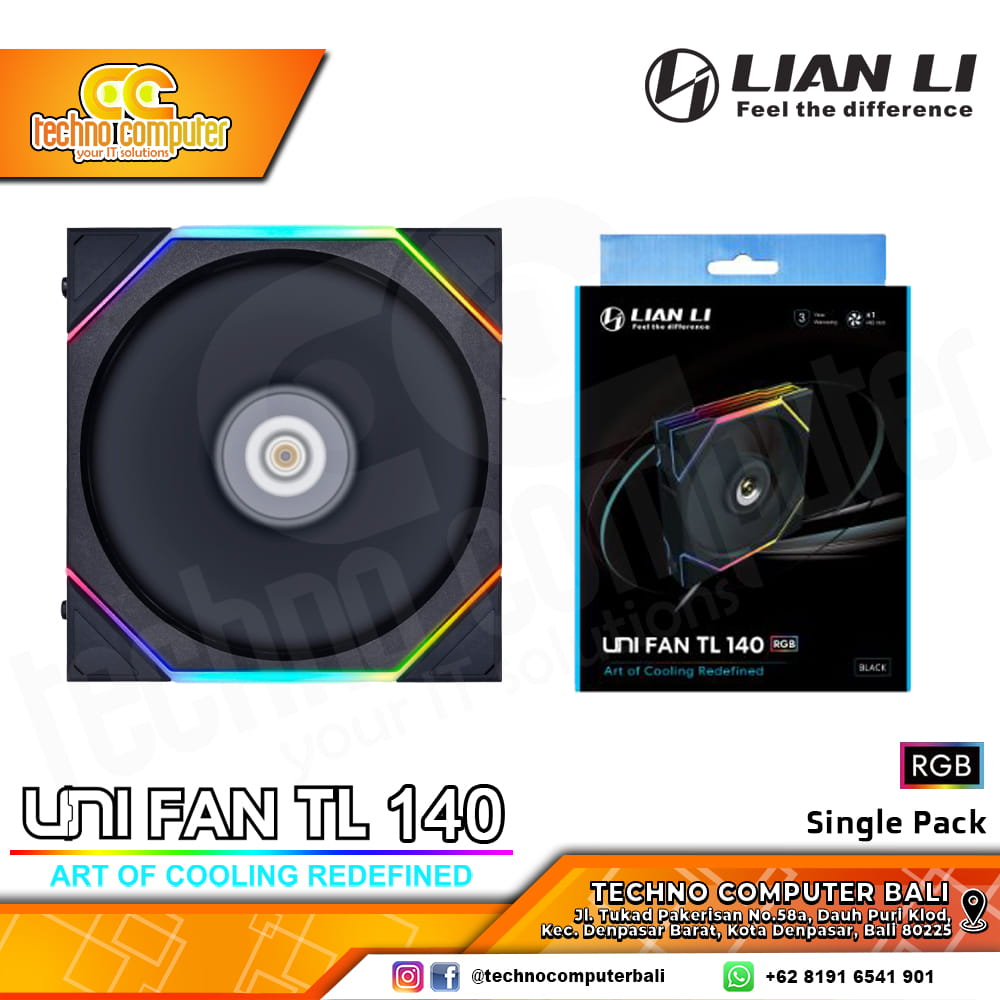

- UNI FAN TL 140

MODEL
- 14TL1B
- 14TL1W

COLOR
- Black
- White

NUMBER OF FANS
- 1
- 1

CONTROLLER
- NO

CONNECTOR TYPE
- UNI FAN Controller Cable x 1 (P-7P)
- Extension Cable x 1 (P-P)

FAN DIMENSION
- 144 X 140 X 28 (mm)

FAN SPEED
- 0, 200~1800 RPM

MAX. AIR PRESSURE
- 2.34 mmH2O (Maximum)

MAX. AIRFLOW
- 103.9 CFM (Maximum)

ACOUSTIC NOISE
- 29 dB(A) Max

INPUT POWER
- 4.6W

MATERIAL
- PA66 / LCP

RATED VOLTAGE
- DC 12V (FAN) & 5V (LED)

BEARING TYPE
- Fluid Dynamic Bearing (FDB)

OPERATE VOLTAGE
- DC12V & 5V

WARRANTY
- 3 years
