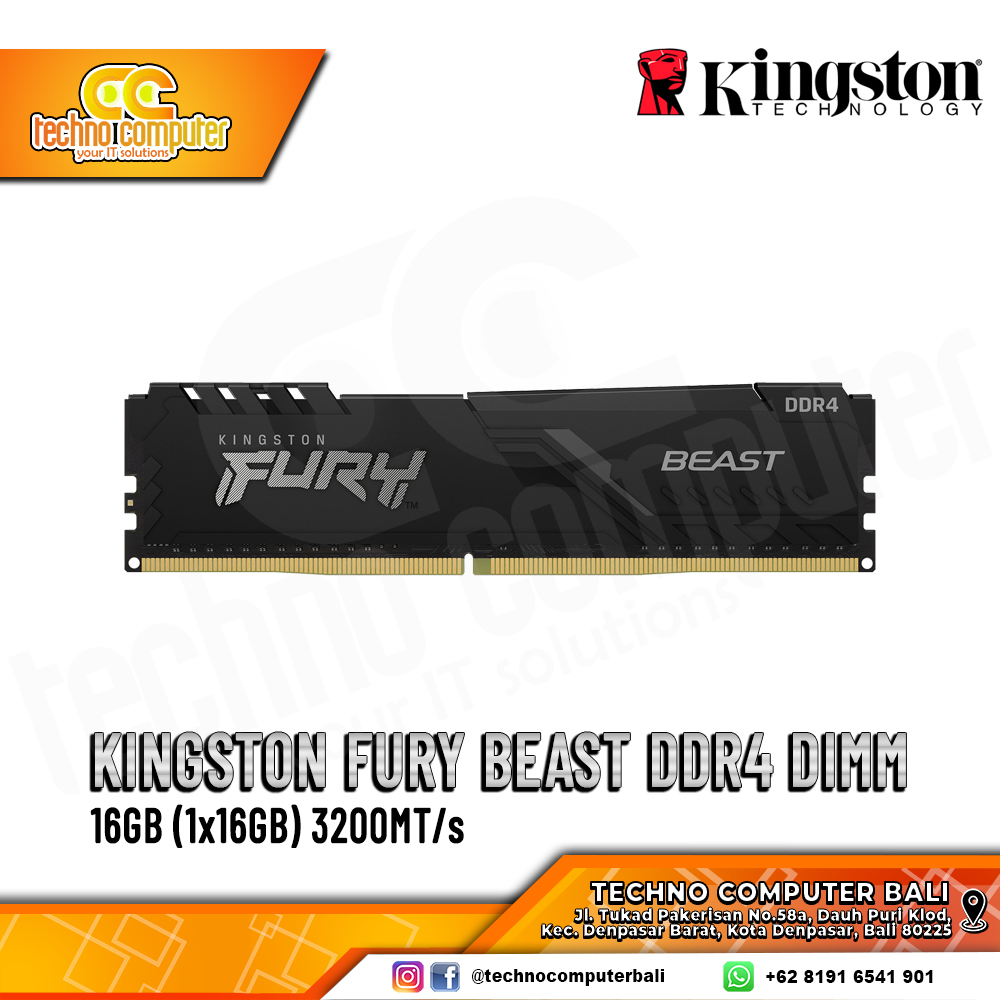

RAM Kingston DDR4 Fury Beast 16GB
KF432C16BB
Color : BLACK

Kingston FURY KF432C16BB/16 is a 2G x 64-bit (16GB)
DDR4-3200 CL16 SDRAM (Synchronous DRAM) 1Rx8, memory
module, based on eight 2G x 8-bit FBGA components per module.
Each module kit supports Intel® Extreme Memory Profiles
(Intel® XMP) 2.0. Each module has been tested to run at
DDR4-3200 at a low latency timing of 16-20-20 at 1.35V. The
SPDs are programmed to JEDEC standard latency
DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM
uses gold contact fingers. The JEDEC standard electrical
and mechanical specifications are as follows:

FEATURES
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

SPECIFICATIONS

Capacity : 16GB DDR4
Memory Profile : 3200 Mt/s
Latencies : CL16-20-20
Voltage : 1.35V

CL(IDD) 17 cycles
Row Cycle Time (tRCmin) 45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin) 350ns(min.)
Row Active Time (tRASmin) 32ns(min.)
UL Rating 94 V - 0
Operating Temperature 0C+85C
Storage Temperature -55 C to +100C

Limited Lifetime Warranty
