Specifications :

Model

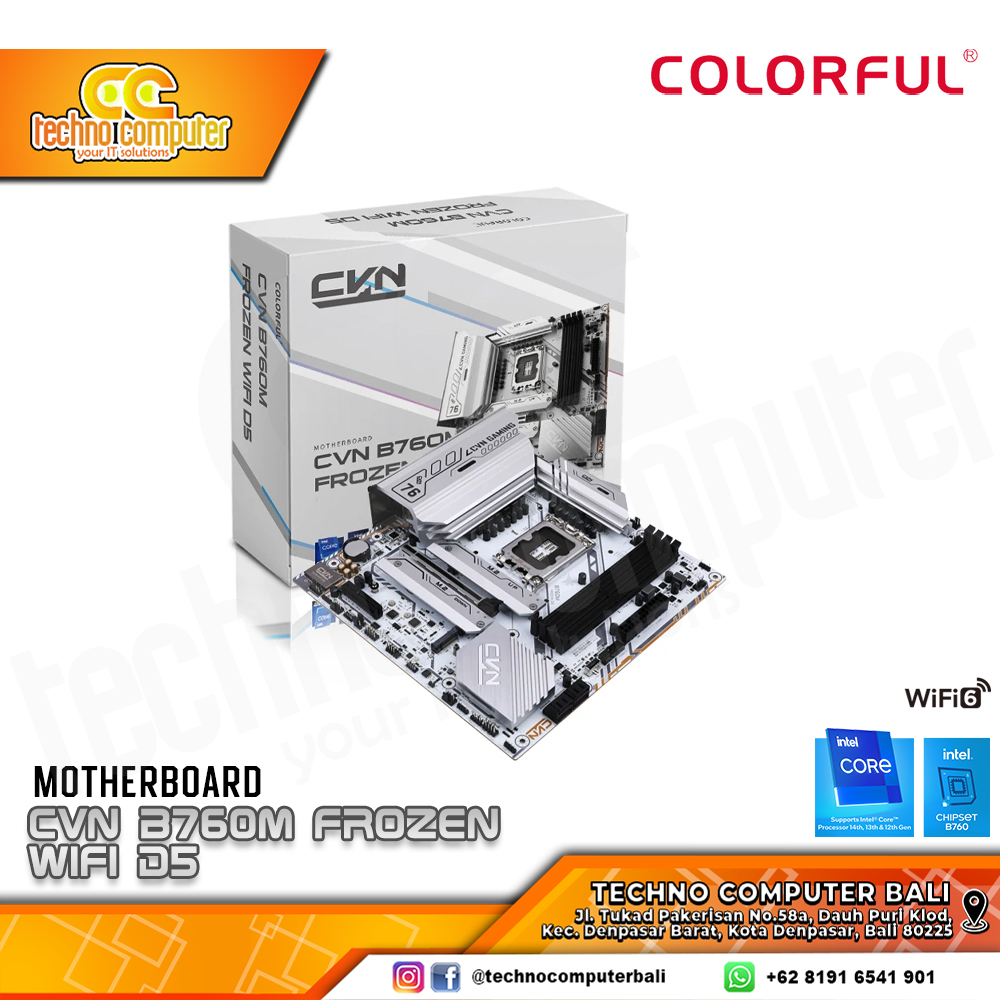

- CVN B760M FROZEN WIFI D5 V20

Product Series
- CVN series

Chipset
- Intel B760

Processor
- Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor

Memory
- Four DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory)

Expansion Slots
- 1×PCIe 5.0 x16 slot
- 1×PCIe 3.0 x4 slot

BIOS
- 128M UEFI, supporting multiple languages

Power Management
- Support S3, S4, network S5 wake-up, regular power on and power on

Hardware Monitor
- CPU fan speed is controllable, system fan speed is controllable（Fan1 supports independent control and Fan2 and Fan3 share control）, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring

LAN
- RTL8125 2.5Gbit LAN, AX201/AX200 WiFi 6 wireless network card, Bluetooth 5.2

Audio
- Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels

Configuration
- M-ATX
- 245mm x 245mm
