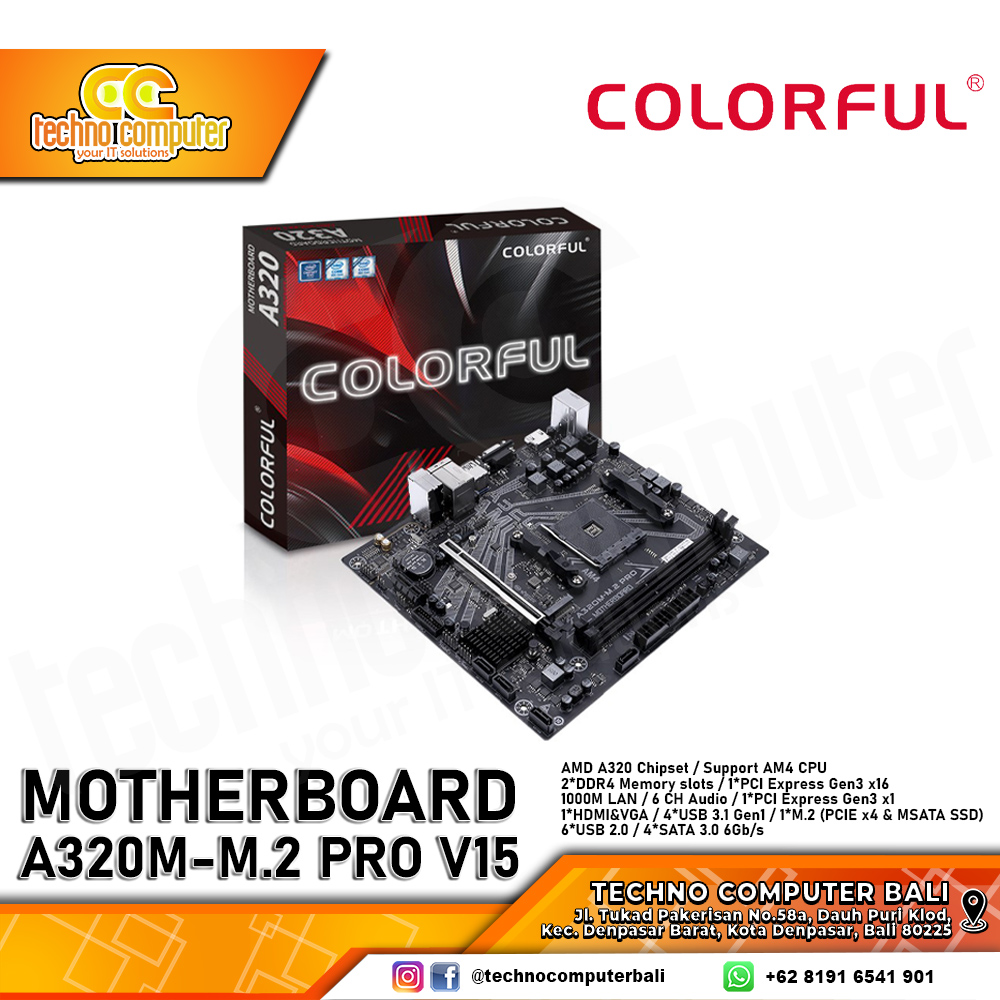

A320M-M.2 PRO V15
--------------
Supports AMD Socket AM4 CPUs
2*DIMM slots
*Supports Dual Channel DDR4 3200(OC)/3000(OC)/2800(OC)/2666/2400/2133MHz memory
4*SATA3.0 ports
RTL8111H 1000M LAN
Realtek ALC662 6-ch audio chipset
VGA+HDMI ports
6*USB2.0 ports(4 through header)
4*USB3.0 ports(2 through header)
1*M.2 slot
*Supports PCI-e x4 & SATA SSD and 2242/2280 size SSD
1*12V 4Pin RGB fan header
support the USB charging function in power off state

Motherboard Series : AMD chipset,COLORFUL series
Chipset : AMD A320
Processor : Supports AMD Socket AM4 CPUs
Memory : 2 DIMM slots，support dual channel DDR4-3200(OC)/3000(OC)/2800(OC)/2666/2400/2133 MHz
Graphics Support : 1*PCI Express3.0X16 slot
SATA Ports : 4*SATA3.0 6Gb/s ports
Board I/O : 1*PS2 port;1*HDMI port,1*VGA port; 4*USB 2.0 ports,2*USB 3.0 ports; 1*RJ45 1000M LAN; 3*audio ports; （onboard： 1*USB2.0 header,1*USB3.0 header）
Expansion Slots : 1*PCI Express3.0X1 slot.1*M.2 slot;
BIOS : 128M UEFI
Power Management : support 65W processors
Hardware Monitor : CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring
LAN : 1000M LAN，Provides 10/100/1000Mb Ethernet
Audio : ALC662 6-channel audio chipset
Configuration : 190 x 215 mm mATX
Other Features : The two USB ports under the PS2 port support the charging function under the shutdown state, which can be turned off with JKB jumper!
