SPECIFICATIONS

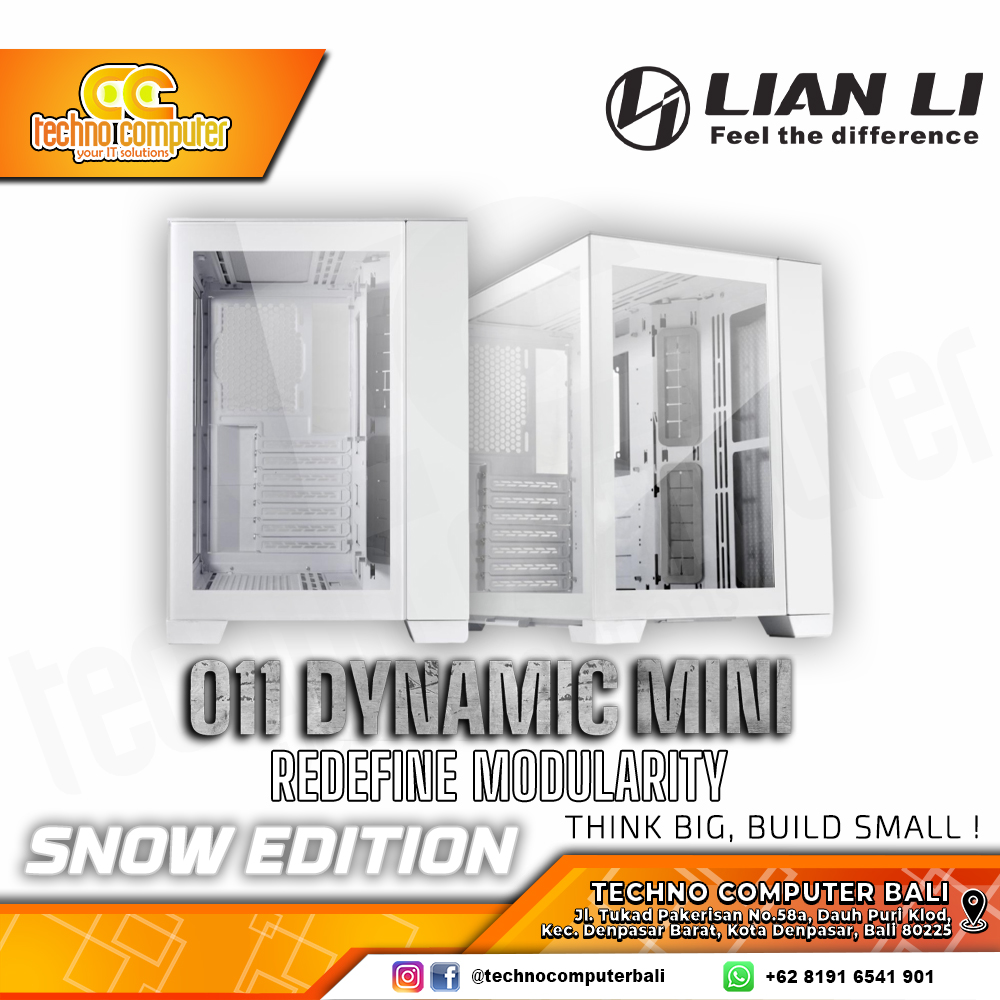

Product Name O11 Dynamic MINI
DIMENSIONS (D)420mm X (W)269.5mm X (H)380mm
MOTHERBOARD ATX/ Micro-ATX/ Mini-ITX
PSU SFX/ SFX-L
MATERIAL Steel
4 mm Tempered Glass
2mm Aluminum (top and left panel)
FAN SUPPORT Top: 3x 120mm or 2x 140mm
Side: 2x 120mm or 2x 140mm
Bottom: 3x 120mm or 2x 140mm
Rear: 1x 120mm
RADIATOR SUPPORT Top: 360mm or 280mm or 240mm radiator
Side: 240mm or 280mm radiator
Bottom: 360 or 280mm or 240mm radiator
GPU LENGTH CLEARANCE 395mm
CPU COOLER HEIGHT CLEARANCE 172mm
VGA Length 370mm
DRIVES Right side 2 x 2.5″ SSD + back plate 2 x 3.5″ HDD (or SSD)
EXPANSION SLOTS 3 or 5 or 7 slots (depends on back panel)
IO PORTS 2 x USB 3.0, 1 x USB 3.1 TYPE-C, 1 x HD Audio, Power Button
DUST FILTERS 1 x Top, 1 x Bottom, 2 x Side
