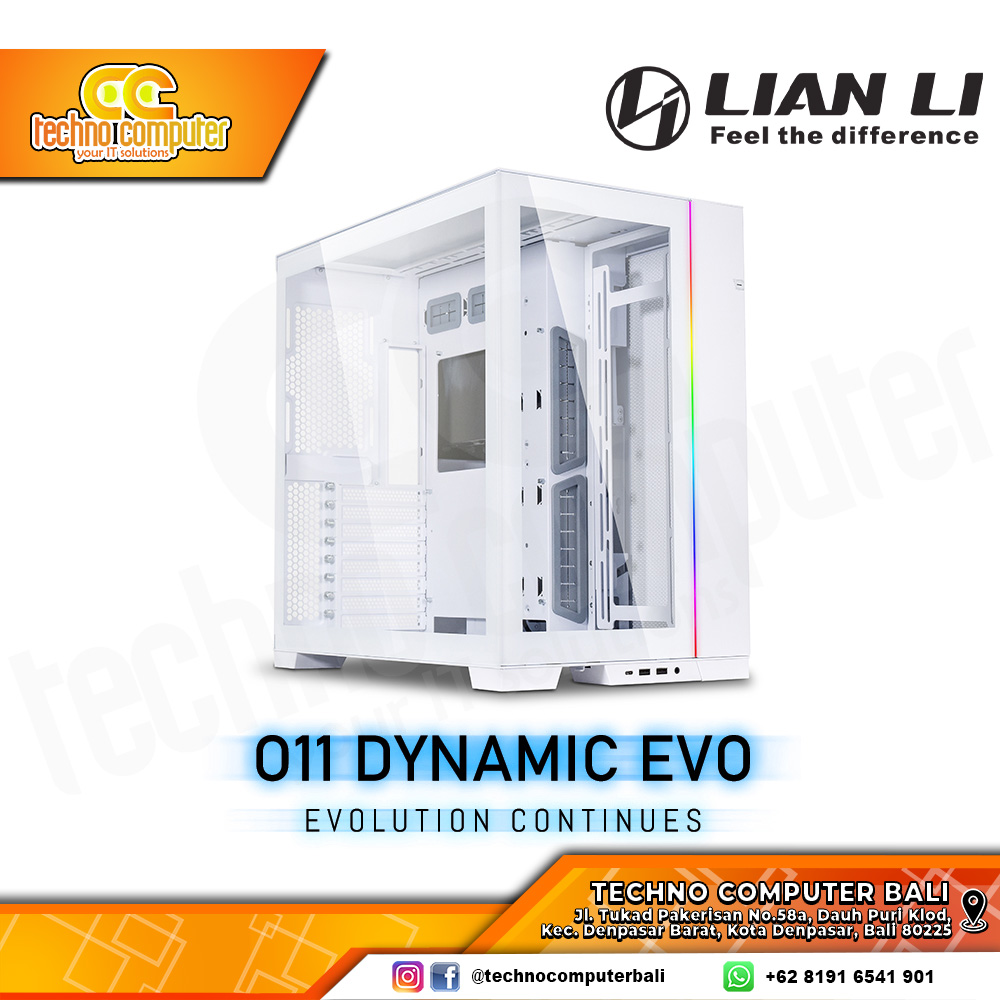

CASING LIAN LI O11 DYNAMIC EVO White - Mid Tower E-ATX Case Tempered Glass

Harga
Silahkan hubungi admin melalui WhatsApp
Category CASING
Subcategory KOMPUTER
Brand LIAN LI
Available on
Share

Deskripsi

PRODUCT NAME
- O11D EVO

MODEL
- O11DEX
- O11DEW

COLOR
- Black
- White

DIMENSION
- (D)465mm × (W)285mm × (H)459mm

MATERIAL
- 4mm Aluminum
- 4mm Tempered Glass
- 1mm Steel Structure

MOTHERBOARD SUPPORT
- E-ATX (width: under 280mm)/ATX /M-ATX/ITX

PSU SUPPORT
- 220mm

FAN SUPPORT
- Top: 120mm × 3 or 140mm × 2
- Side: 120mm × 3 or 140mm × 2
- Bottom: 120mm × 3 or 140mm × 2
- Rear: 120mm × 1
- On Drive Cage: 60mm × 1

RADIATOR SUPPORT
- Top: 360mm × 1 or 280mm × 1
*Total max thickness: 87.5mm
- Side: 360mm × 1 or 280mm × 1
*Inner scenario total max thickness:
83mm(120mm fan on top and bottom)
63mm(140mm fan on top and bottom)
*Outer scenario total max. thickness:
120mm(120mm fan on top and bottom)
100mm(140mm fan on top and bottom)
- Bottom: 360mm × 1
*Total max thickness: 87.5mm

DRIVE SUPPORT
- Bottom:2.5” SSD × 4 or 3.5” HDD × 2
- Side:2.5” SSD × 4 or 3.5” HDD × 2
- Drive Cage:2.5” SSD × 3 or 3.5” HDD × 2 + 2.5” SSD × 1
- Cable Management Bar:2.5” SSD × 2
*Only 9 sets of 2.5” SSD mounting pads are provided

GPU LENGTH CLEARANCE
- 422 mm

CPU HEIGHT CLEARANCE
- 167 mm

EXPANSION SLOTS
- 8

I/O PORTS
- 2 × USB 3.0
- 1 × USB 3.1 TYPE-C,
- 1 × HD AUDIO/ MIC
- LED Color and Mode button
- Reset Button
- Power Button

- DUST FILTER
- Bottom × 1
