Chassis Type： mATX
Led's Mode： ARGB

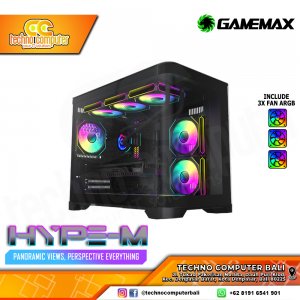

MODEL : HYPE-M
Form Factor : (Micro, Mini ITX)
Chassis : 0.5mm SPCC
PSU Form Factor : ATX
M/B Form Factor : Micro-ATX(200mm)/ Mini-ITX
Front Panel: Curve Tempered Glass
Top Panel : metal cover
Side Panel Left : Full tempered glass
Right : Metal
External Drive Bay(s) : 5.25" (ODD) NO
Internal Drive Bay(s) : 3.5" (HDD) HDD*2
2.5" (SSD) SSD*3
I/O : Buttons 3
USB3.0 Port(s) USB3.0*1
USB2.0 Port(s) USB2.0*1
Audio Support Combo Audio*1
Card Reader (Support) Not supported
Fan Controller
RGB Controller
Controller max. fans 9
Remote (IR or RF) *1

Cooling Fan Support : Front : NO
Top : 120mm*3 or 140mm*2(optional)
Rear : 120mm*1(included)
Left Side : NO
Right Side :120mm*2(included)
bottom : 120mm*3 or 140mm*2(optional)
Water Cooling Support
(Radiator Size) Right Side : 240mm*1
Top : 120mm*1,240mm*1,360mm*1
Rear : NO
Dust Cover : Top and bottom with dust filter
Slots : 4
Full Case (inc Fascia): 412*280*350 (L*W*H)mm
Carton : 435*340*525 (L*W*H)mm
Net Weight (Kg) : 11.54kg
Gross Weight (Kg) : 12.87kg
VGA Card Length: MAX 400mm
CPU Cooler Height : 157mm
Cable Management Depth : ATX POWER 140/160/200mm
