Deskripsi

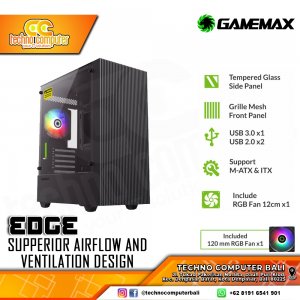

Upgrade Friendly: The tempered glass side panel provides a convenient and transparent view of your battle station.
Minimalist Style, Maximum Power: The lines on the front panel offers a stylish and modern design while providing maximum airflow to keep your system cool and clean. The top I/O panel allows for easy access to your devices.
Chassis Type MATX
Spesifikasi:
Model: EDGE (FTY#6650)
Form Factor MICRO ATX
Chassis: SPCC 0.45mm Black coated
PSU Form Factor: Bottom/ATX
M/B Form Factor: M-ATXITX
Front Panel: Plastic with Airflow lines
Top Panel: Metal cover
Side Panel
- Left: Tempered Glass
- Right: Metal cover
Internal Drive Bay(s)
- 3.5" (HDD): *3
- 2.5" (SSD): *5
3*3.5HDD+2*2.5SSD or 2*3.5HDD+3*2.5SSD or 1*3.5HDD+4*2.5SSD or 0*3.5HDD+5*2.5SSD
I/O
- Buttons *2
- USB2.0 Port(s) *2
- USB3.0 Port(s) *1
- USB3.1 Port(s) *0
- Audio Support *1 (HD AUDIO)
- RGB Controller *0
Cooling Fan Support
- Front: 3x120mm,2x140mm(Fan optional)
- Top: 2x120mm ,2x140mm (Fan optional)
- Rear: 1x120mm (Included)
Water Cooling Support (Radiator Size)
- Front: 120mm, 140mm,240mm,280mm,360mm
- Top: 120mm, 140mm,240mm
- Rear: 120mm
- M/B Cover: *0
Dust Cover: Bottom and top cover with dust filter
Slots: *5
Dimensions
- Chassis (L)330*(W)200*(H)430mm
- Full Case (inc Fascia) (L)380*(W)200*(H)450mm
- Carton (L)493*(W)254*(H)428mm
VGA Card Length: Up to 320mm(Front cover w/o fan)
CPU Cooler Height: 155mm
SPS Length: 160mm
Cable Management Depth: 19mm
