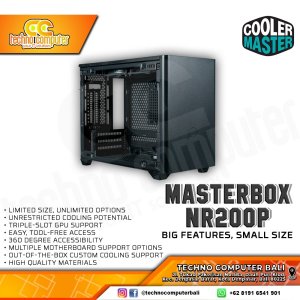

Model Number : MCB-NR200P-KGNN-S00, MCB-NR200P-WGNN-S00
Series : MasterBox Series
Size : Mini ITX
Available Color(s) : Black, White
Materials : Steel, Plastic, Mesh, Tempered Glass
Dimensions (L x W x H) : 376 x 185 x 292mm incl. Protrusions, 360 x 185 x 274mm excl. Protrusions
Volume (exlc. Protrusions) : 18.25L
Motherboard Support : Mini DTX, Mini ITX, Max. size: 244 x 226mm
Expansion Slots : 3
3.5" Drive Bays : 1 (Max. 2)
2.5" / 3.5" Drive Bays (combo) : 1
2.5" Drive Bays : 2 (Max. 3)
I/O Panel : 2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)
Pre-installed Fans - Top : 2x 120mm 650-1800RPM PWM (SickleFlow)
Pre-installed Fans - Front : N/A
Pre-installed Fans - Rear : N/A
Pre-installed Fans - Bottom : N/A
Fan Support - Top : 2x 120mm
Fan Support - Rear : 1x 92mm
Fan Support - Bottom : 2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)
Fan Support - Side : 2x 120/140mm
Radiator Support - Top : N/A
Radiator Support - Rear : 92mm (not compatible with vertical GPU installation)
Radiator Support - Bottom : 120mm, 240mm, (recommended for custom loops only)
Radiator Support - Side : 120mm, 140mm, 240mm, 280mm, (not compatible with vertical GPU installation)
Clearance - CPU Cooler : 76mm (GPU in vertical position), 153mm (tempered glass side panel), 155mm (vented steel side panel)
Clearance - PSU : 130mm
Clearance - GFX : L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot)
Dust Filters : Top, Bottom, Left side, Right side
Power Supply Support : SFX, SFX-L
Warranty : 2 years
Accessories : 1x PCIe 3.0 x16 riser cable
Note : single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position
