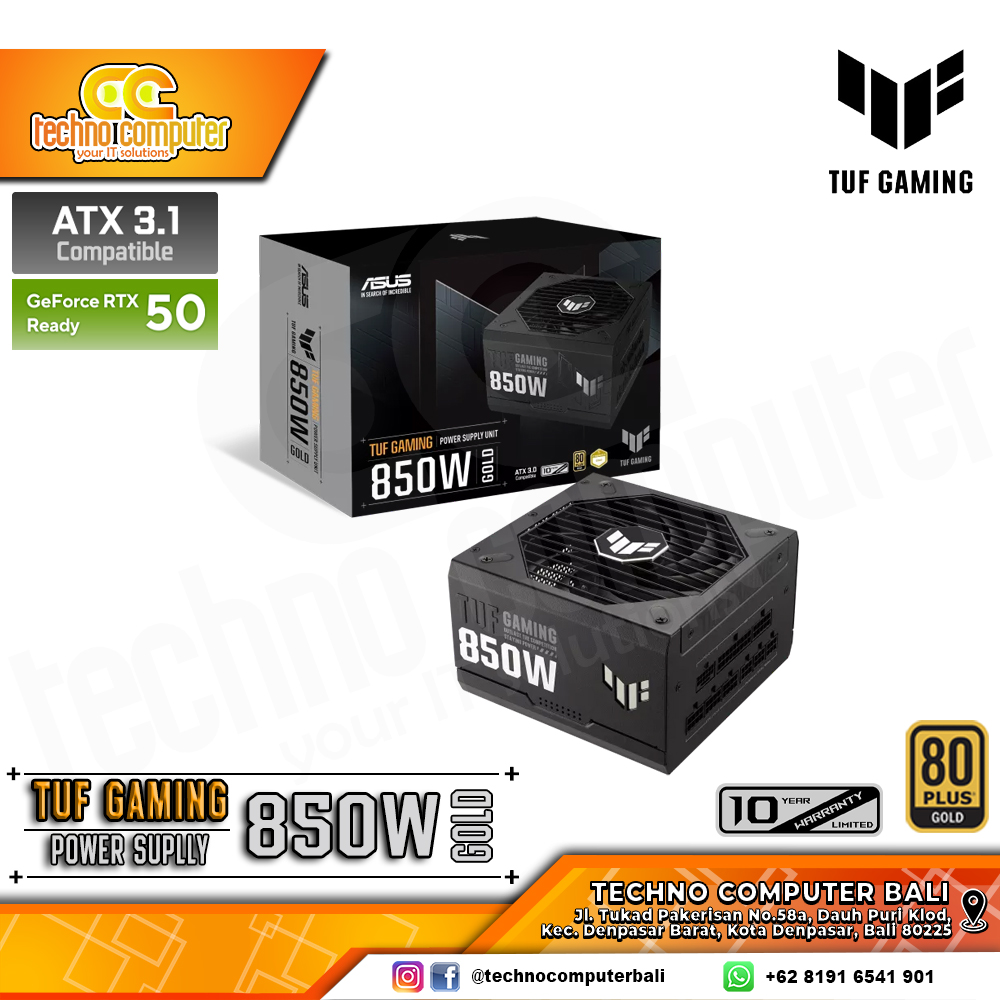

Model: TUF Gaming 850W Gold
Intel Form Factor: ATX12V
PFC Type: Active PFC
ATX Standard: ATX 3.1
Dimensions: 150 x 150 x 86 mm
Efficiency: 80Plus Gold
MTBF: >120,000 hrs @ 40°C
Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials: ROHS
AC Input Range: 100-240Vac
DC Output Voltage: +3.3V +5V +12V -12V +5Vsb
Maximum Load: 25A 25A 70.8A 0.8A 3A
Combined Load: 130W 130W 850W 9.6W 15W
Total Output: 850W
Cable Connectors:
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 4
Package Contents:
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5.1 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable Tie x 3
User Manual x 1
Weight: 2.38kg (single PSU)
0dB Technology: Supported. The fan shuts off entirely when the PSU is under certain load
0dB Fan Button: No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.
