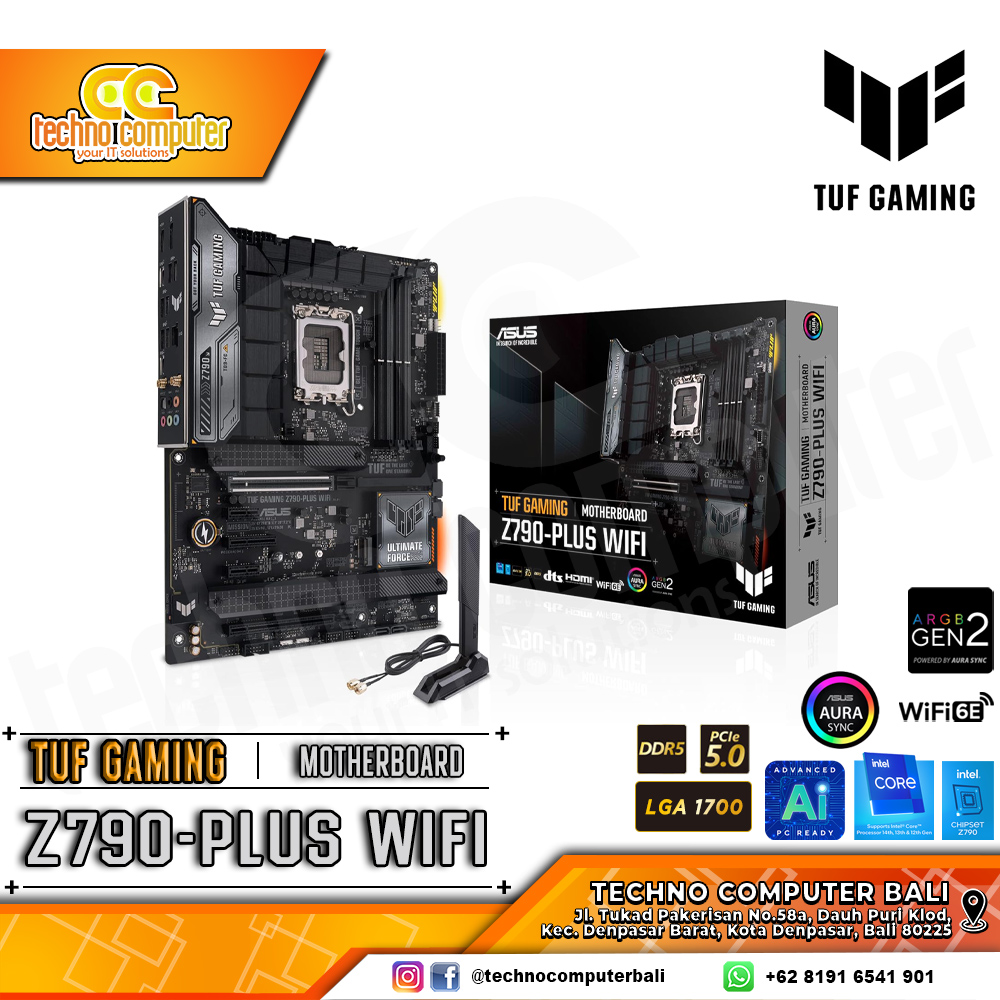

ASUS TUF GAMING Z790-PLUS WIFI - ATX, LGA1700, Z790, DDR5

Harga
Silahkan hubungi admin melalui WhatsApp
Category MOTHERBOARD
Subcategory INTEL
Brand ASUS
Available on
Share

Deskripsi

Motherboard Asus TUF GAMING Z790 PLUS WIFI DDR5
90MB1D80-M0UAY0/90MB1D80-M1UAY0
--------------------

CPU : Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Chipset : Intel Z790 Chipset
Memory : 4 x DIMM, Max. 128GB, DDR5, Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture.
*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
Storage : Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
IntelĀ® Z790 Chipset
M.2.2 slot (Key M), type 2242/2260/2280 (supports PCle 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCle 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

Expansion Slots :
Intel 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots

Graphics : 1 x DisplayPort , 1 x HDMI port
Ethernet : 1 x Intel 2.5Gb Ethernet & TUF LANGuard
Wireless & Bluetooth : WI-FI 6E & Bluetooth v5.3
Audio Features : Realtek 51220A 7.1 Surround Sound High Definition Audio CODEC

Back Panel I/O Port
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C")
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C")
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port

USB
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C")
3 x USB 3.2 Gen 2 ports (2 x Type-A +1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C")
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Form Factor : ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Garansi 3 Tahun
