Model

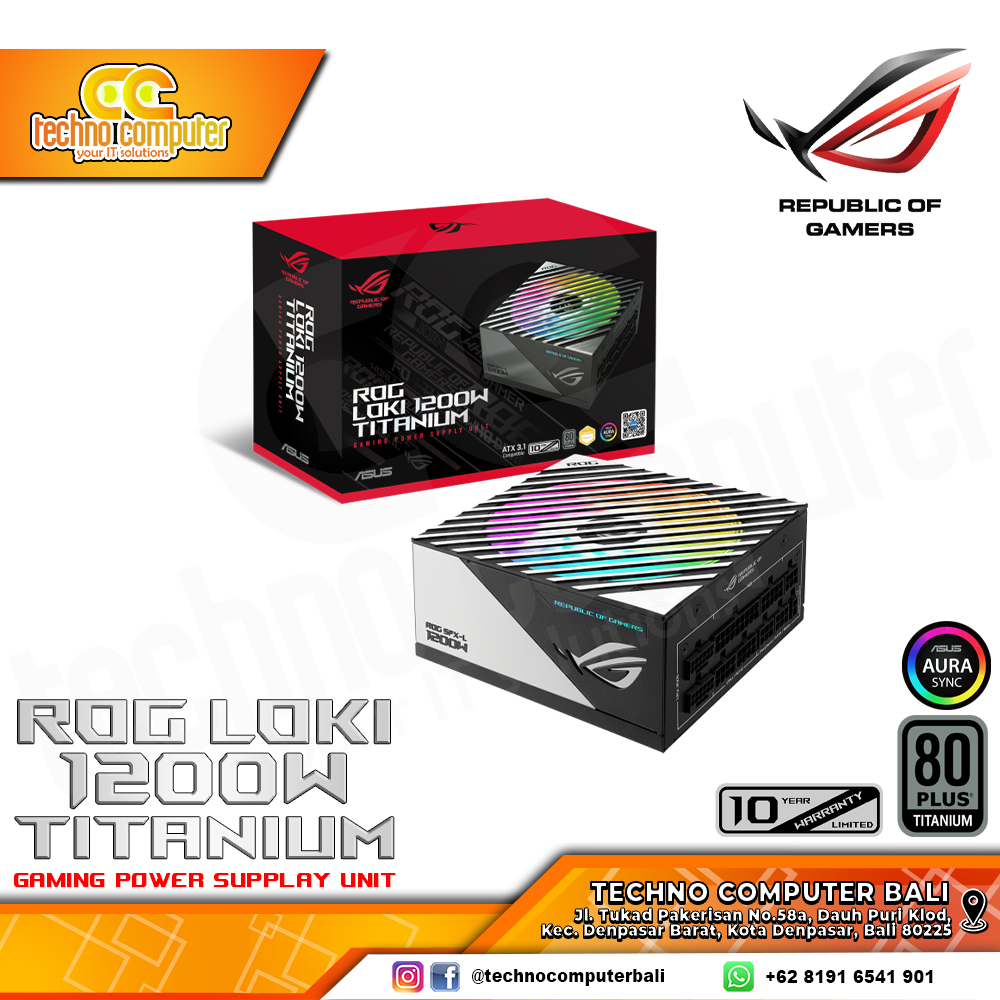

ROG-LOKI-1200T-SFX-L-GAMING


Intel Form FactorSFX-L
PFC TypeActive PFC
ATX StandardATX 3.1
Dimensions125 x 125 x 63.5 mm
Efficiency80Plus Titanium
MTBF>120,000 hrs @ 25°C
Protection FeaturesOPP/OVP/UVP/SCP/OCP/OTP
Hazardous MaterialsROHS
AC Input Range100-240Vac
DC Output Voltage+3.3V +5V +12V -12V +5Vsb
Maximum Load20A 20A 100A 0.8A 3A
Combined Load110W 110W 1200W 9.6W 15W
Total Output1200W
ConnectorsMB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 2 (both PSU & component side)
PCI-E 8-pin x 4
SATA x 6
PERIPHERAL x 4
Package ContentsPower Cord x 1
Motherboard Power Cable x 1 (450mm)
CPU Cable x 2 (550mm)
PCI-E Gen 5.1 16-pin Cable x 2 (450mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 2 (450mm)
SATA 1-to-3 Cable x 2 (300+200+100mm)
Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
ATX to SFX adapter bracket x 1
Weight2.15 kg (single PSU)
AURA SYNCARGB
Cybenetics Noise Level CertificationS++
0dB TechnologySupported. The fan shuts off entirely when the PSU is under certain load
